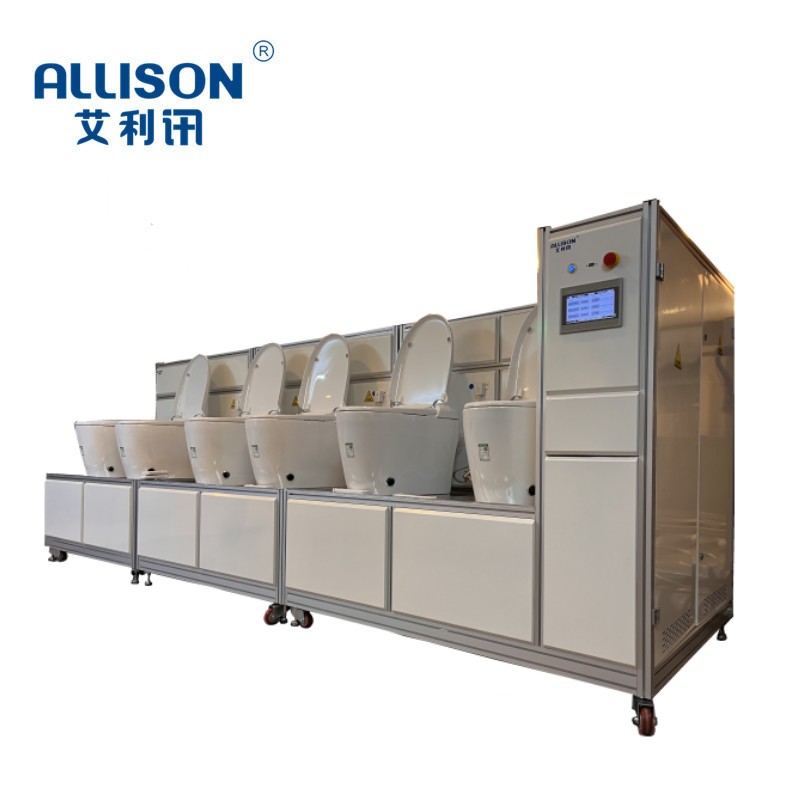

Standard wear test stand for erosion performanceIn this paper, the life test of intelligent toilet/toilet is carried out under different test water environment and function. The equipment is widely used in the products of one-piece toilet, split toilet and so on. Through PLC control and 7-inch touch screen panel display, using related program control.

Carry out the aging test of toilet/toilet bowl with different test water, such as silt water, mixed water, constant temperature water, etc. , the comprehensive evaluation of the durability of the whole toilet/toilet intelligent toilet machine was carried out

The test device is easy to operate, and the related test data support USB export.

Related parameters:

1.Test station: 2-6(optional)

2.Control mode: Mitsubishi PLC control, 7-inch touch screen display

3.Test water temperature: 5-65 degrees adjustable (without constant temperature water supply system)

4.Detection Scope: Flushing, cleaning, flushing function, etc.

5.Test/Response Time: 0-999999S

6.Number of tests: 0-999999

7.Water supply pressure range: 0.1-0.6 mpa accuracy: 0.5 class

8.Test water: sediment water, ratio water, constant temperature water

9.Data Recording: Test Times, test time, water supply pressure

10.Power supply: 220V 2.5 kw
