GB/T34549-2017  Sanitary ware, intelligent toilet

GB/T23131-2019  Electric toilet seats for household and similar use

GB 38448-2019 Limit of energy efficiency and water efficiency for intelligent toilet

CBMF15-2016 Smart toilet

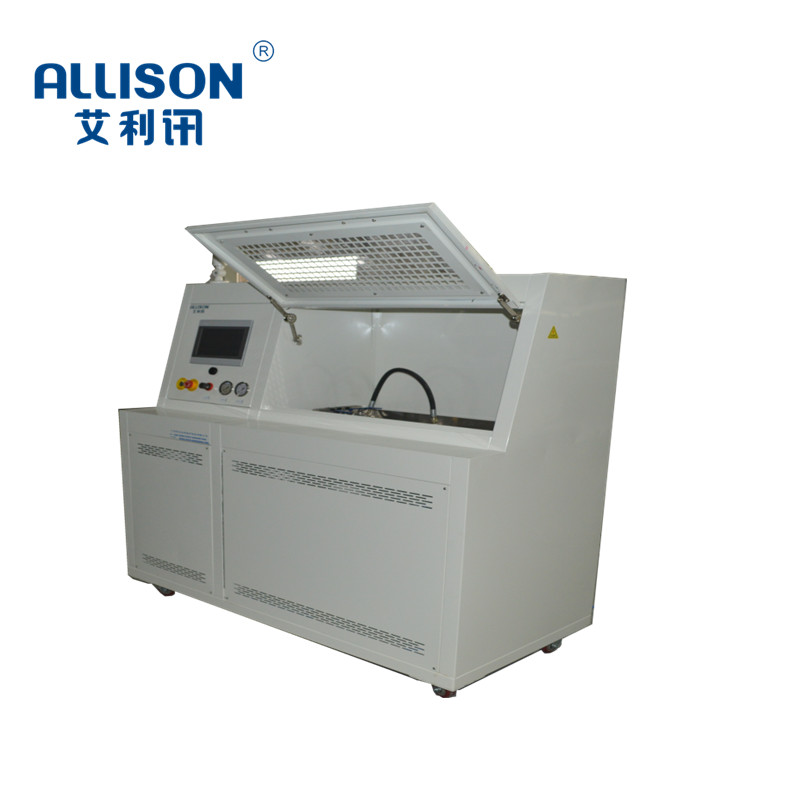

Product description

The utility model is mainly used for testing the water pressure tightness of the toilet assembly and the water hammer resistance. The testing machine adopts Mitsubishi PLC control and 7-inch touch screen display, the control system realizes the pressure control through the program automatic control, the leak value upper and lower limit detection and judgment, the system automatically produces the required standard pressure, through the pressure sensor and copper pipe device to achieve the product in a set of water pressure under the sealing test and water hammer test. The device has automatic collection, data recording and so on, and can export and print related test content through USB

Scope of application: experimental testing/on-line testing, such as sealing test and product durability analysis.

Main technical parameters：

1.Pressure Range: 0.1 ~ 2.0 mpa adjustable

2.Pressure accuracy: ± 1% accuracy 0.25 grade

3.Constant pressure time: 1-99999s

4.Pressure display: static pressure, peak value

5.Cycle Frequency: 1-10/min

6.Test period: 0-9999999 adjustable

7.Number of test: 1 Way

8.Display: curve/value

9.Test medium: normal temperature tap water (optional water temperature function)

10.Driving source: frequency conversion high-pressure water pump, air pump

11.Control mode: PLC touch screen setting

12.Source: 0.6 mpa

13.Power: 220V 50HZ 6.5 kw

14.Equipment Size: 1650X750X1680MM (according to customer samples)
