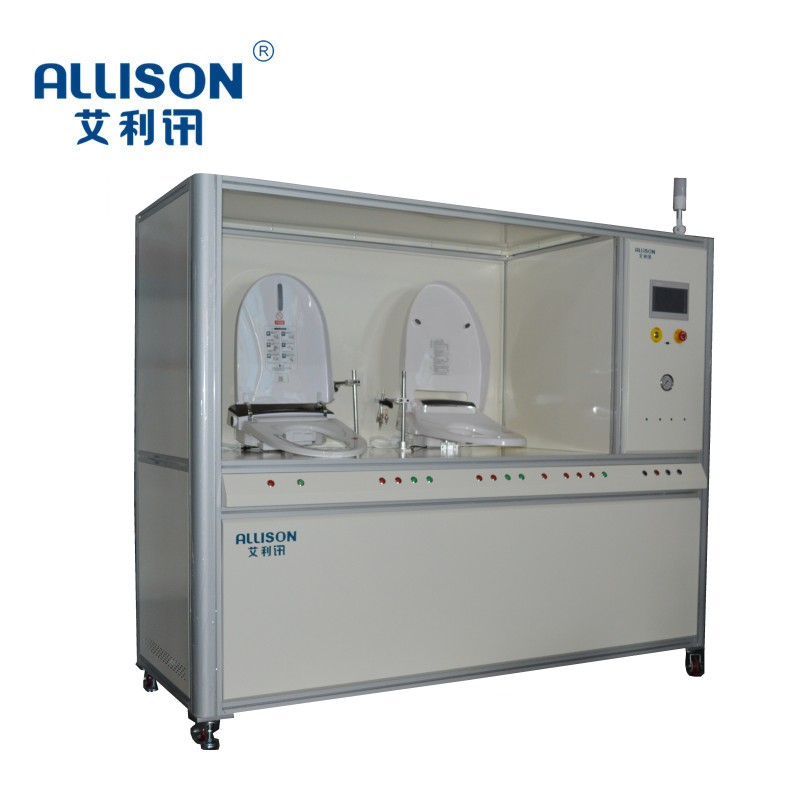

Intelligent toilet/toilet seat temperature testing equipment is mainly aimed at the toilet seat heating function of the durability life test. The real-time monitoring and temperature recording of the temperature point of the seat ring are carried out through the temperature acquisition module. The reliability life test is carried out by long-time operation. The equipment is widely used in the products of one-piece toilet, split toilet and so on.

Through PLC control and 7-inch touch screen panel display, using related program control. The toilet seat ring through heating time, heating on-off time, temperature, the average value of the test data record and use of durability judgment. The test device is easy to operate, and the related test data support USB export.

Related parameters：

1.Test station: 2 stations

2.Control mode: Mitsubishi PLC control, 7-inch touch screen display

3.Temperature Collection: Type K

4.Detection Scope: heating time, heating on-off time, temperature, average value, test times and so on

5.Test Time: 0-999999S

6.Number of tests: 0-999999

7.Control mode: PLC 7-inch screen display

8.Temperature Detection Range: 0-100 degrees

9.Detection Channel: 32 points/station

10.Power supply: 220V 1.75 kw
