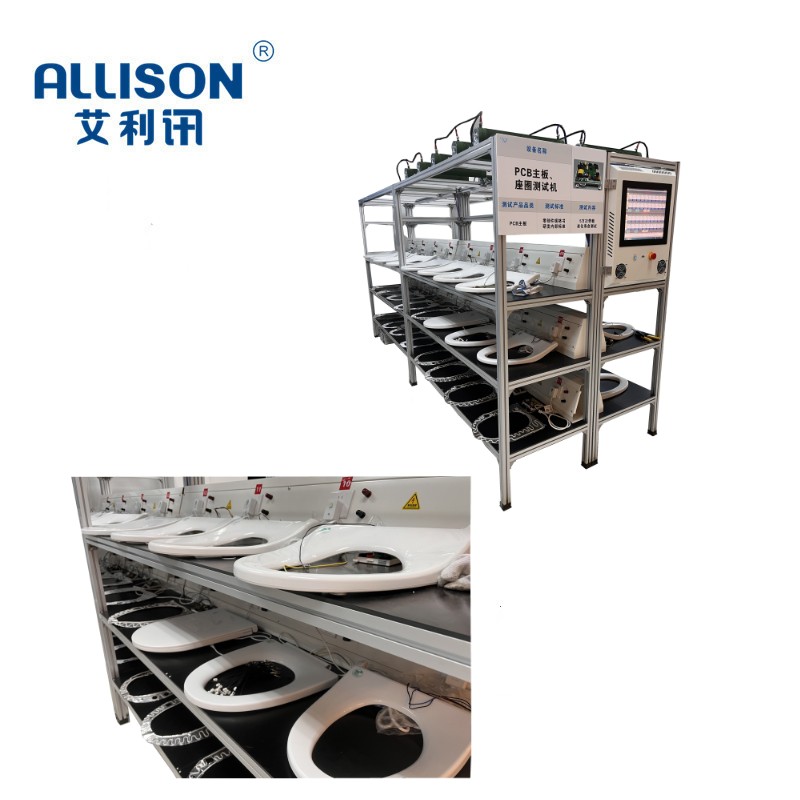

Standard intelligent toilet seat/PCB aging test equipment is mainly suitable for the seat seat, PCB circuit board and other parts of the continuity and periodicity of life testing. In the normal temperature environment, through the system setting and control, to test the components for a long time on/off life test. The whole equipment system is controlled by PLC program, manual quick installation, one-button Start Test mode. The working indicator lights of the system can automatically detect the running conditions of the major systems. Control system for the independent development of PLC control. Adopt PLC and 17-inch touch screen control system, the equipment running control through. Control system and with abnormal, fault alarm, and other functions.

Main technical parameters:

1. Test Station: 10-40 station

2. Output voltage: 0-250V (adjustable) DC 0-36V

3. Test times/time setting: 0 ~ 99999 hours/min/sec (adjustable)

4. Time mode selection: long run/periodic run

5. Control mode, 17 Touch Display PLC

6. Power supply: 220V 4.5 kw

7. Equipment Size: 2500X 650x 1650 UNU: MM

8. Load: 0-20A adjustable

9. Wiring: Socket/terminal

10. Data Export Method: USB
