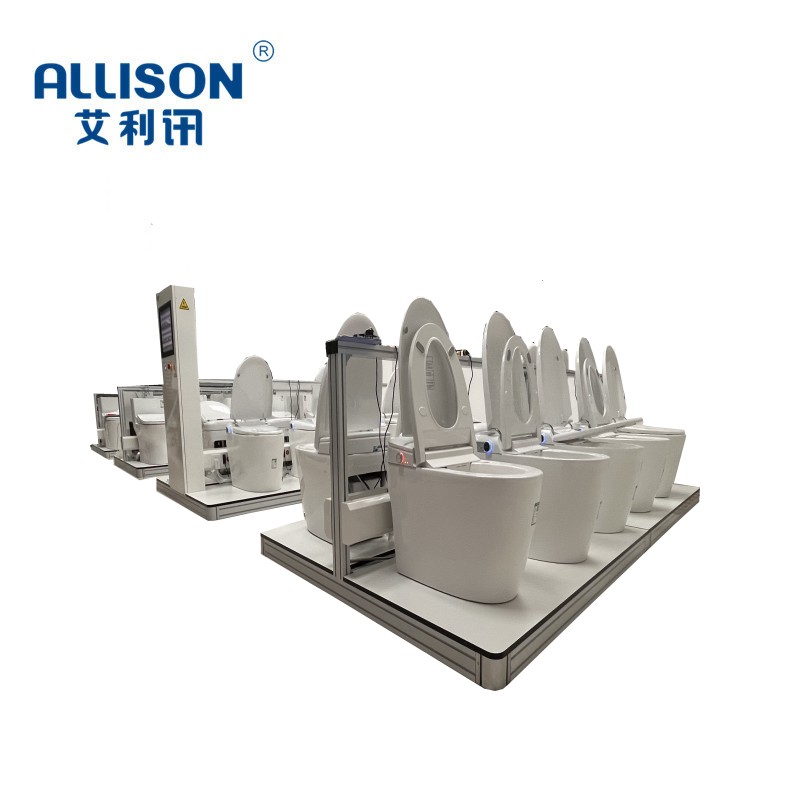

intelligent toilet flush valve aging life testing equipment is mainly suitable for the intelligent toilet flush valve for continuous and periodic life testing. Through the infrared detection device to detect the switch box action, and record the number of tests. Through the system setting and control, the intelligent toilet flush valve action for a long time on/Off Life Test.

The whole equipment system is controlled by PLC program, manual quick installation, one-button Start Test mode. The working indicator lights of the system can automatically detect the running conditions of the major systems. Control system for the independent development of PLC control. Adopt PLC and 17-inch touch screen control system, the equipment running control through. Control system and with abnormal, fault alarm, and other functions.

Technical parameters:

1. Test Station: 10-40 station

2. Output voltage: 0-250V (adjustable) DC 0-36V

3. Test times/time setting: 0 ~ 99999 hours/min/sec (adjustable)

4. Time mode selection: long run/periodic run

5. Control mode, 17 Touch Display PLC

6. Power supply: 220V 4.5 kw

7. Equipment Size: 2500X 1250x 1650 UNU: MM

8. Detection: infrared sensing

9. Wiring: Socket/terminal

10. Data Export Method: USB.
