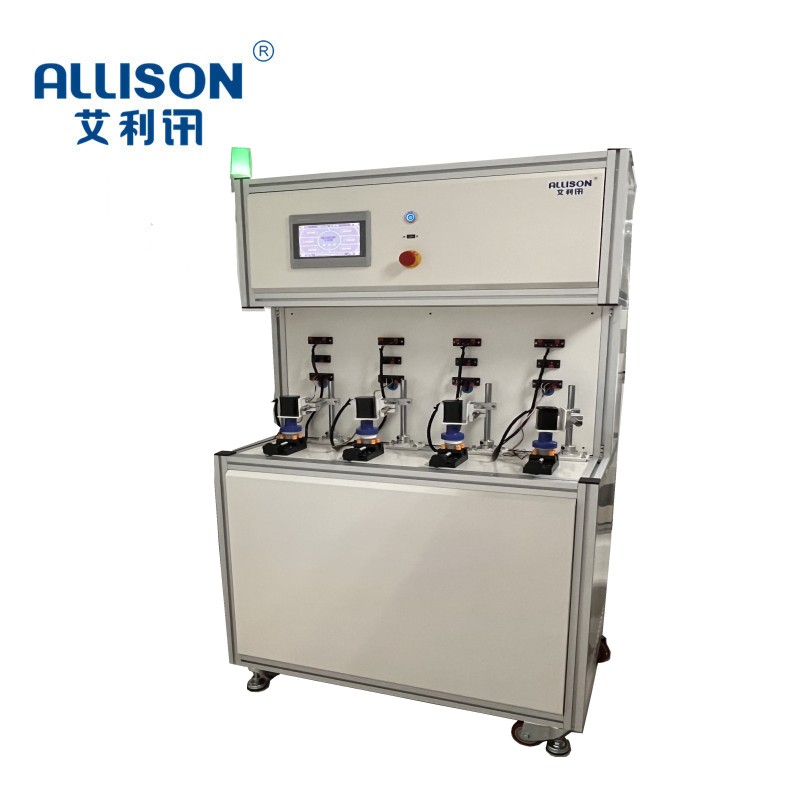

The rotating switch assembly life test-bed is mainly suitable for continuous and periodic rotating life test of rotating switch parts. In the normal temperature environment, through the system setting and control, to test the rotating button on/off rotating life for a long time. The whole equipment system is controlled by PLC program, manual quick installation, one-button Start Test mode.

Using stepping servo drive mode, through PLC program control, stepping servo motor with 90-0-90 angle of positive and negative action life test. Real simulation of the actual use of the environment. The equipment adopts PLC control, 7-inch touch screen operation. Test the rotary buttons of each station from multiple angles, and judge by the on-off of Io signal. Control system for the independent development of PLC control. PLC and 7-inch touch screen control system, the operation of the equipment through control. Control system and with abnormal, fault alarm, and other functions.

Main technical parameters：

1.Test station: 4 stations are all independent

2.Output Voltage: DC 0-36V

3.Time setting: 0 ~ 99999 hours/min/sec (adjustable)

4.Time mode selection: long run/periodic run

5.Control mode, 7 Touch Display PLC

6.Power supply: 220V 4.5 kw

7.Equipment Size: 1500X 650x 1650 UNU: MM

8.Angle Range: 180-0-180 degrees

9.Judgment: Io signal, on and off

10.Number of tests: 0-99,999

11.Equipment size: 1250X650X1680 units; MM
