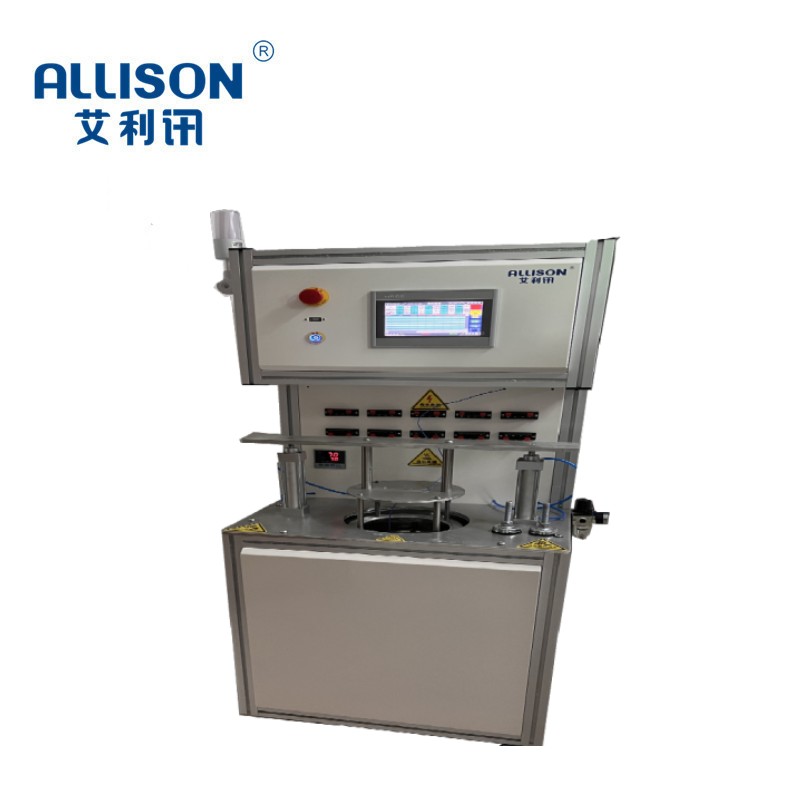

Intelligent toilet temperature sensor life testing machine is mainly suitable for a variety of temperature controllers for temperature characteristics and simulation of the actual working conditions of the life test. In the normal temperature-100 degrees water temperature test environment, through the system setting and control, the test of the temperature controller on/off action to test the relative test and judge whether qualified or not.  The whole equipment system is controlled by PLC program, manual quick installation, one-button Start Test mode.  The off-switch signals are collected by PLC to record the relevant off-switch temperature and reset temperature. When each station is abnormal in the test process, the control system gives an acoustic-optical alarm to the abnormal station and stops the test, without affecting the normal test of other stations. All test-related data can be exported via USB.

Main technical parameters:

1.Inspection Station: 20 stations

2.Measuring temperature range:  Normal temperature is 10 °C  ---300℃  Accuracy of temperature measurement Plus or minus 0.5 ° C or 0.5% The resolution is 0.1 ° C

3.Time setting: 0 ~ 99999 hours/min/sec (adjustable)

4.Test the product action temperature, reset temperature and record the related action temperature, action cycle number

5.Control mode, 7 Touch Display PLC

6.Life test rate: about 1-6 times/min

7.Temperature Measurement: K-type graduation line for temperature sampling, each station independent detection and recording.

8.Heating mode: high temperature box

9.Water temperature range: RT Plus 10-80 degrees adjustable

10.Number of tests: 0-99,999

11.Equipment size: 1250X650X1680 units; MM
