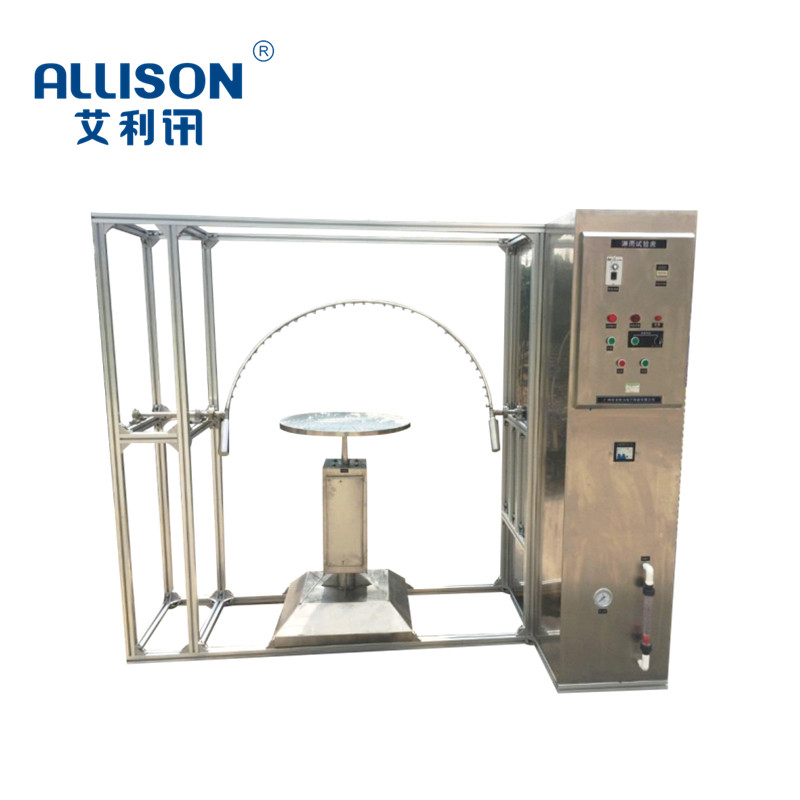

IPX3 IPX4Shower test machine，This set of equipment can meet the requirements of GB4208 IEC60529 GB7000.1“Shell protection grade” of IPX3, IPX4, waterproof grade test and equivalent waterproof test methods.

Main technical parameters:

1.Model: Qx-p3-4a

2.Pendulous semicircle: 400/600/800/1000/1200/1400/1600

3.Spray Hole: Φ0.4; distance between two holes: 50mm

4.Pendulum swing: ± 0-170 ° adjustable

5.External warp: φ20mm (stainless steel)

6.Height of Pendulum: the center of Pendulum is 1.4 m from the ground

7.Rain water pressure: 50-300kpa (adjustable)

8.Water flow: can be displayed

9.Test-bed: Rotary Table 300-500mm, rotating speed: 1-17r/min

10.Control mode: mechanical/Mitsubishi PLC control

11.Supply voltage: AC220V, ; 4.5 kw

12.Equipment Size: 2000X 1200x 1650 UNU: MM
