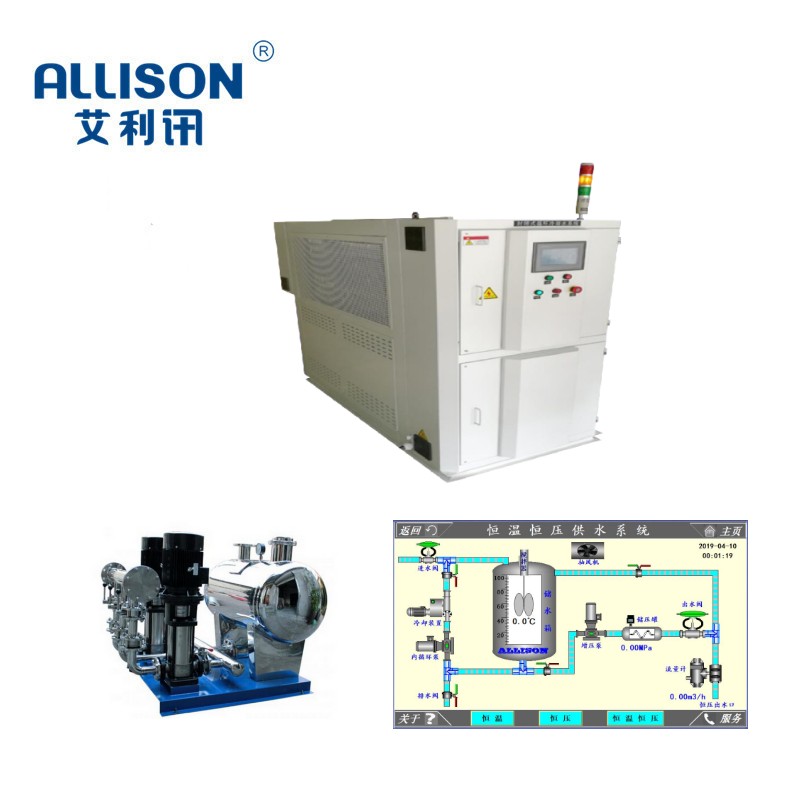

Water supply system is based on GB25502, GB38448-2019 standard B1B2 mode equipment. The water supply system mainly aims at providing a simulated test environment of constant water temperature and constant water pressure. The water supply system is mainly composed of reserve heat preservation tank, constant temperature/constant pressure system and main control system

The whole system is controlled by PLC, and a series of tests are completed in the existing test room. The constant temperature water supply and constant pressure water supply are realized by PLC central control platform. The working indicator lights of the system can automatically detect the running conditions of the major systems.

Control system for the independent development of PLC control. PLC and 7-inch touch screen control system, the operation of the equipment through control. Control system and with abnormal, fault alarm, and other functions.

Technical parameters:

1.Water pressure range: 0.5% . 01-1.2 mpa flow control range: 1-30L/min

2.Test station: unit, output diameter: DN15

3.Equipment Power: 220VAC 50HZ 4.5 kw

4.Test water temperature range: 5-80 degrees adjustable

5.Test water temperature range: 5-80 degrees adjustable

6.Control mode: PLC control 7-inch touch screen display

7.Equipment size: 1500X1150X1680 unit: MM

8.Test Data Export: USB data export
