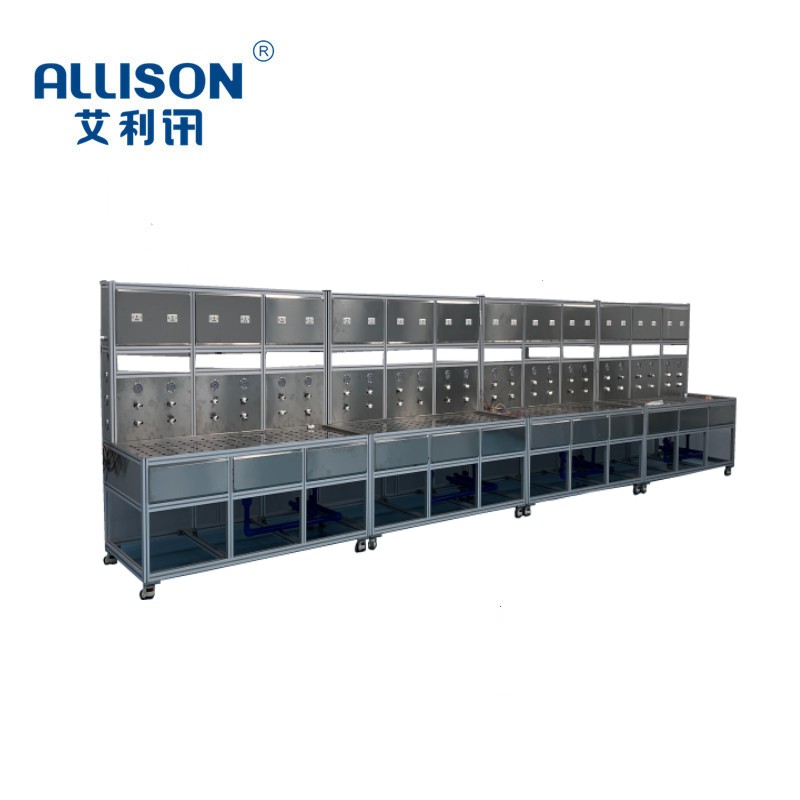

Water Purifier testing table is assembled by aluminum profile, structural design is an integral structure, equipment sealing plate is 304 # steel. The overall appearance of the equipment coordination and beautiful atmosphere. The internal pipeline uses 304 # and the equipment maintenance is convenient, the output joint uses the drinking water machine quick insertion type arrangement, convenient and efficient. All main components are rust resistant. The working medium can be reused, and the water can be recovered to the water tank automatically.

1.Test platform with constant pressure water supply, through external frequency constant pressure water supply, to the pipeline output constant test water pressure, pressure relief by manual valve backflow.

2.The test platform is divided into 3-way main pipe output, respectively in the constant pressure pipeline/ratio of water/pipeline 2 output, through the valve body for 2-way switch use.

Technical parameters:

1.Test station 20

2.Pipeline 2 independent pipeline (add water 1 way, constant temperature and constant pressure pipeline 1 way)

3.Single Machine Detection Times: 1-99999 can be set

4.Pressure gauge display range: 0.1-1.2 LMPA precision 0.5 class

5.Working voltage of water purifier: AC 0 ~ 300V

6.Working current of water purifier: AC 0 ~ 20A

7.Water Purifier whole machine power: 0-1000w

8.Single test time: 0-999999S adjustable

9.Water supply pressure regulation: manual regulation

10.Equipment Size: 3500X1500X1650(back to back)

11.Power: 220V 1.5 kw 50Hz
