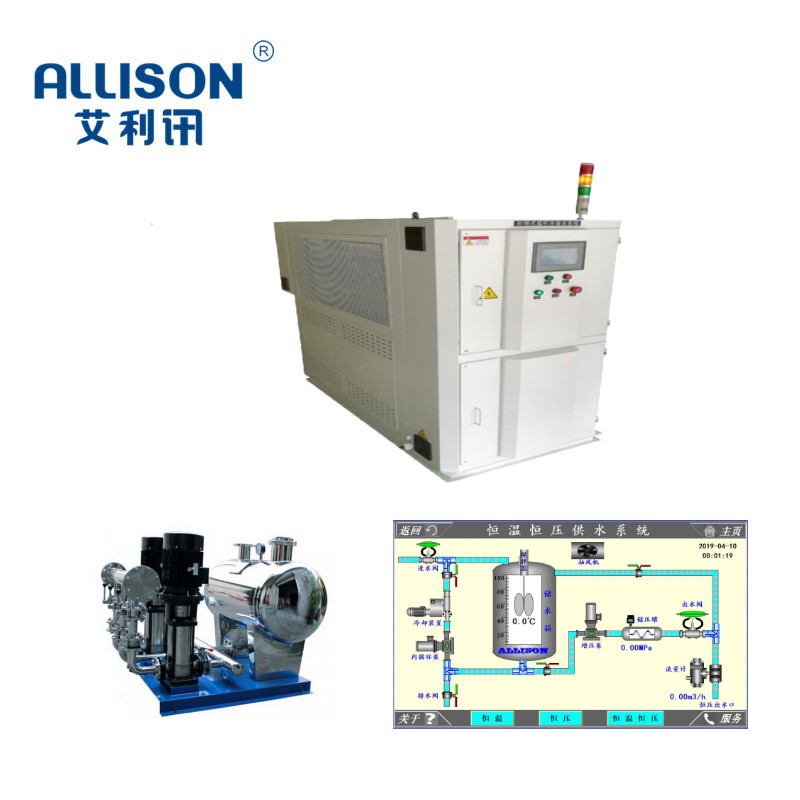

1.Water supply central control device is based on the customer site layout and the requirements of the formulation and design. The water supply central control device mainly aims at providing a continuous constant water pressure simulation test environment for the water purifier to work continuously

The water supply central control device monitors 6 groups of labeled water buckets at the same time, and real-time monitors and controls the water inlet, outlet, water level and output water pressure of each group of water tanks through a 7-inch touch screen.

2.Through PLC control related to the electric valve body to switch the continuous water supply and pressure constant pressure water supply mode. Each station has water level display, automatic water supply, water alarm display functions, and can be used through the system program automatic switch.

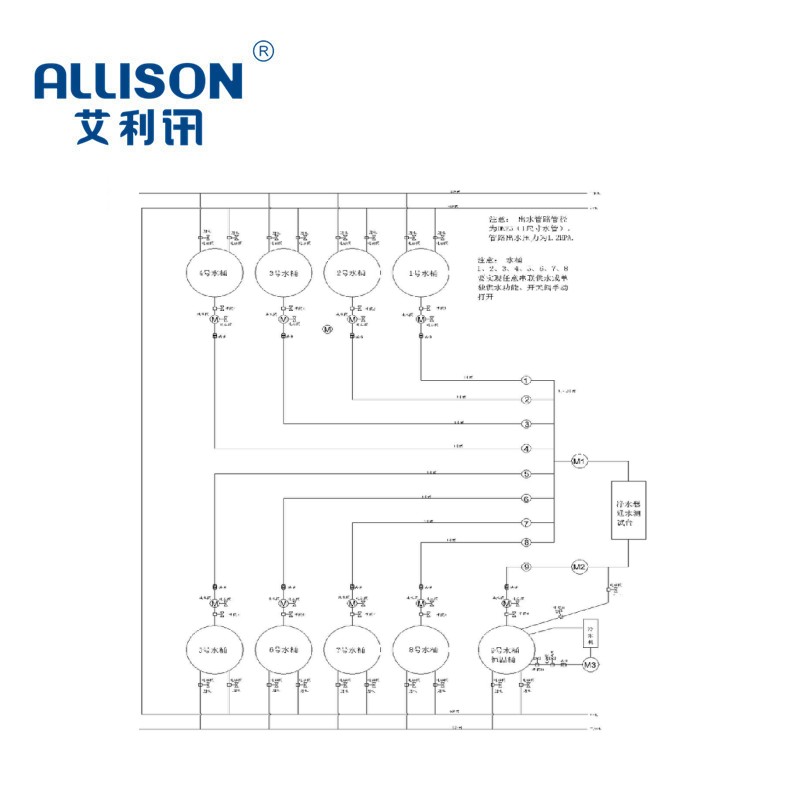

3.The water supply system is mainly composed of 8-way standard water barrel, constant pressure water supply device, constant temperature/constant pressure system (additional) and main control system.

4.The whole system testing is controlled by PLC, and a series of tests are completed in the existing test room. The working indicator of the testing system is realized by PLC central control platform. So the test data can be exported via USB.
