Reference Standard for water purifiers:

GB-T-30306-2013Water treatment cores for domestic and similar purposes

GB_T 30307-2013Domestic and similar drinking water treatment plant

QB_T_4144-2010Reverse osmosis water purification for domestic and similar purposes

According to the relevant standards, the equipment meets the static pressure test of the water purifier

And 0.1-1.2 mpa maximum pressure pulse fatigue test of the special testing machine.

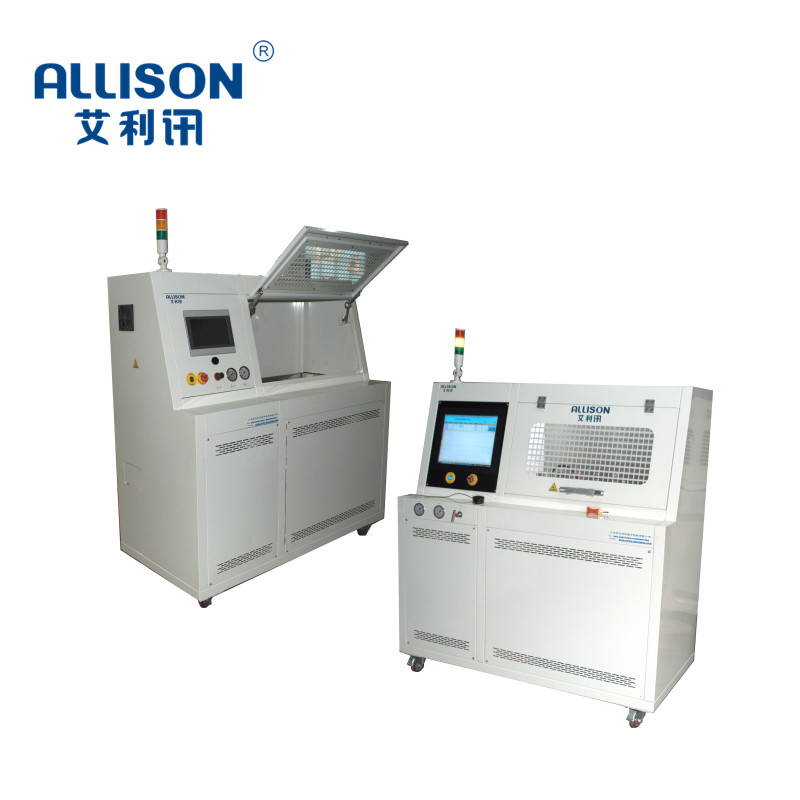

The utility model is used for detecting whether the filter core of the drinking machine, the pressure resistance of the whole drinking machine and the water purifier meet the design requirements.

The testing machine is controlled by PLC/IPC, and the relevant tests are completed by setting and controlling the relevant parameters.

Main technical parameters：

1.Pressure Range: 1 ~ 1.6 mpa

2.Fracture pressure range: 1-20 Mpa

3.Pressure accuracy: ± 1%

4.Control mode: Mitsubishi PLC and 10-inch screen

5.Constant pressure time: 1-99999s

6.Display: numeric/curvilinear

7.Number of test: 1 channel

8.Water temperature controllable range: 13 degrees to 40 degrees control accuracy, plus or minus 2 degrees

9.Equipment Size: 1700X850X1750 high

10.Water source: tap water, Air Source: 0.6 mpa

11.Power: 220V 50HZ 1.5 kw

12.Equipment Size: 1650X650X1680MM
