Reference Standard for water purifiers:

GB-T-30306-2013Water treatment cores for domestic and similar purposes

GB_T 30307-2013Domestic and similar drinking water treatment plant

QB_T_4144-2010Reverse osmosis water purification for domestic and similar purposes

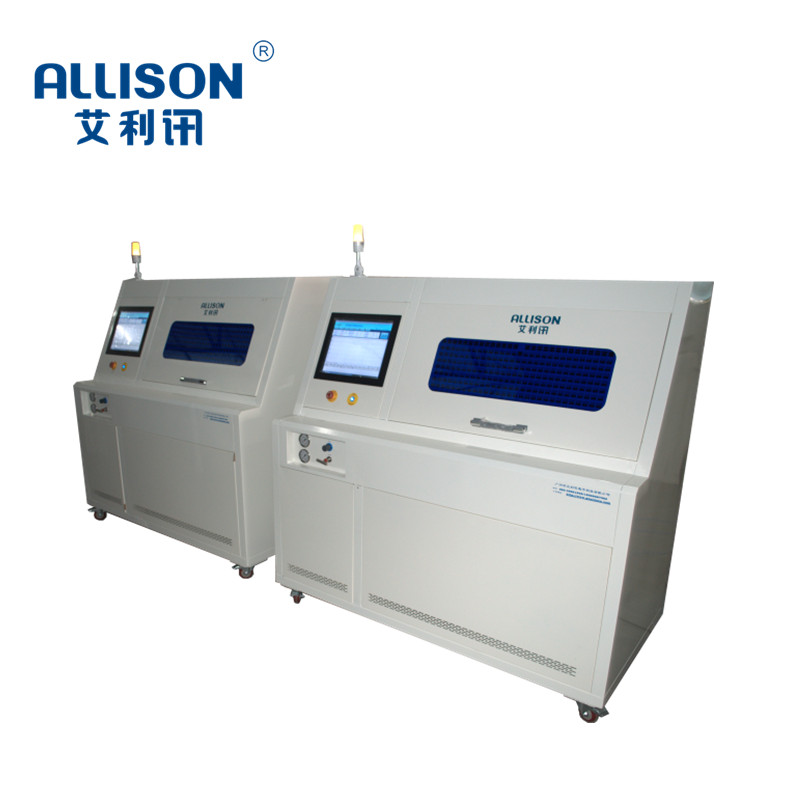

According to the relevant standards, the equipment meets the static pressure test of the water purifier

And 0.1-1.2 mpa maximum pressure pulse fatigue test of the special testing machine.

The utility model is used for detecting whether the filter core of the drinking machine, the pressure resistance of the whole drinking machine and the water purifier meet the design requirements.

The testing machine is controlled by PLC/IPC, and the relevant tests are completed by setting and controlling the relevant parameters.

Main technical parameters：

1.Pressure Range: 1 ~ 1.6 mpa

2.Fracture pressure range: 1-20 Mpa

3.Pressure accuracy: ± 1%

4.Maximum rate of boost: no more than 0.2 mpa/s

5.Constant pressure time: 1-99999s

6.Cycle Pressure: 0-1.2 mpa

7.Cycle Frequency: 6-45/min

8.Cycle number: 100,000 cycles/Test (settable)

9.Number of test: static pressure blasting 1 way, cyclic pressure: 1 Way (maximum expansion of 5 positions)

10.Water temperature controllable range: 13 degrees to 24 degrees control accuracy, plus or minus 2 degrees

11.100L auto-hydrating

12.Equipment Size: 1700X850X1750 high

13.Water source: tap water, Air Source: 0.6 mpa

14.Power: 220V 50HZ 1.5 kw

15.Equipment Size: 1650X650X1680MM
