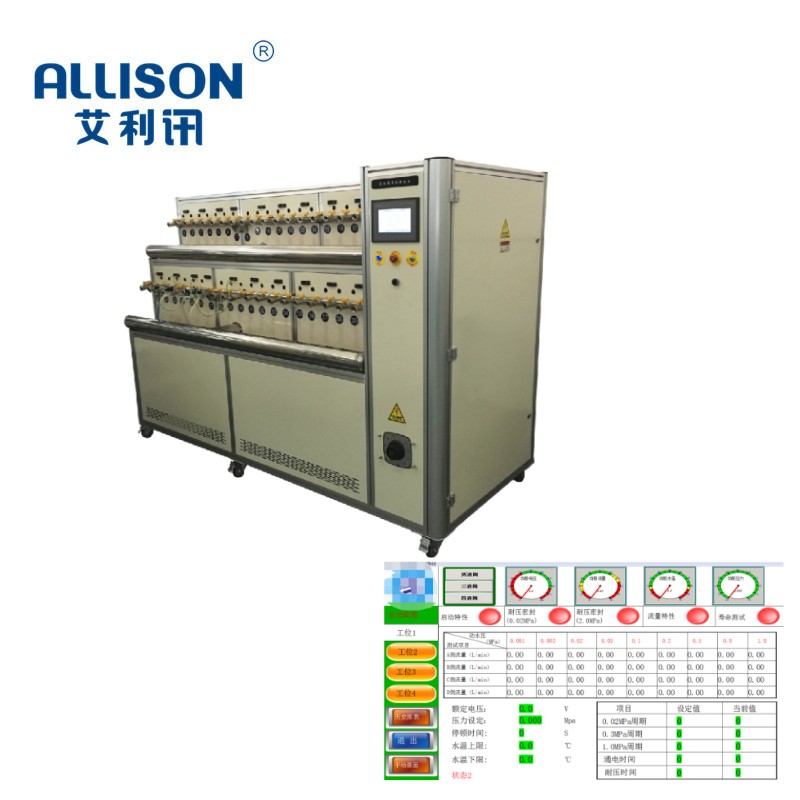

NumberInlet solenoid valve life test standIt is mainly used to test the life of solenoid valve of water purifier, dishwasher, washing machine and so on. Each test mode and parameter can be selected and queried on the man-machine Interface Operation Panel. The frame structure adopts industrial aluminum profile single-layer multi-station design, the appearance requirements are reasonable, reliable, beautiful and generous, the control system adopts industrial control touch computer, the man-machine intelligent control system is composed of force control configuration data acquisition software, the user can define and choose all test data and test mode freely, and can automatically control and detect the fault of the product, completely supersedes manual labor.

Technical parameters of equipment:

1. Number of stations and working mode: 20 stations

2. 20 stations for the valve life test, for the public circulating water system, can choose one or more stations at the same time test, test water, pause time can be set at the same time, test cycle can be set independently.

3. Interval time: 0 ~ 999999S adjustable

4. Water supply pressure range: 1 pump 0-1.2 MPA frequency adjustable

5. Water tank temperature range: normal temperature ~ 65 °C can be set

6. Tank capacity: 80L

7. Water flowmeter: range 2-15L/min, accuracy: ± 2%

8. Explicit Way: direct reading on display industrial computer

9. 2-way AC/DC voltage control mode: 0-60V adjustable manual control, manual adjustable

10. Equipment size: 1850X800X1650 unit: MM

11. Equipment power supply: 220V 3.75 kw
