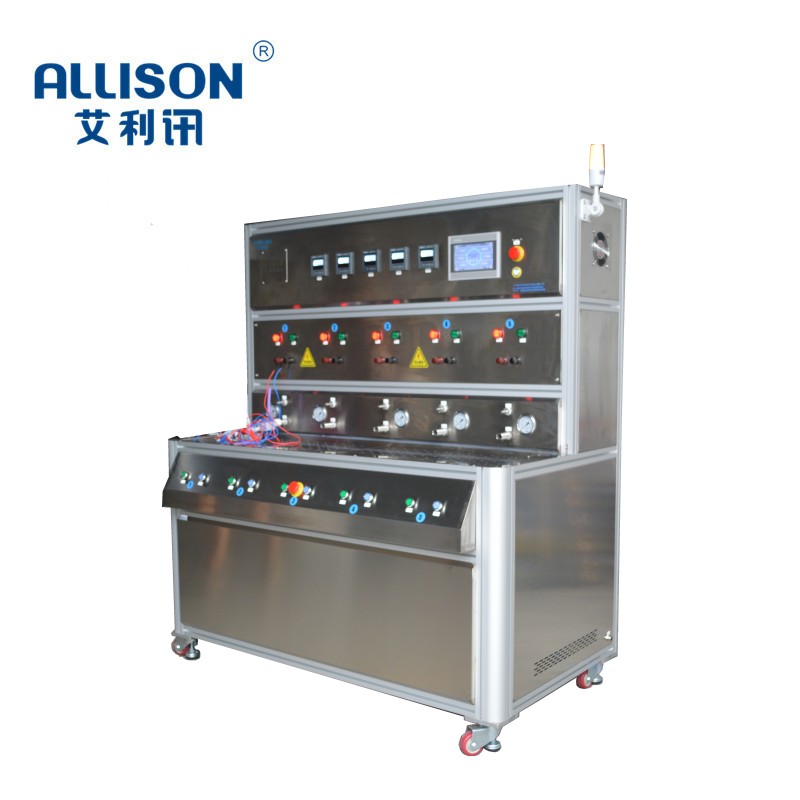

It is mainly used to test the ageing life of various water pumps, such as water purifier diaphragm pump test washing machine dishwasher, etc. .

It meets the requirements of QHR 0503009 drainage pump and other related standards. The structure of the frame is designed with single-layer an

d multi-position of industrial aluminum profile, which requires reasonable, reliable, beautiful and generous appearance, users can define and choose all test data and test patterns freely

Technical parameters

1.Test station: 20

2.The test water is -80 ° C at room temperature. The SUS304 water tank is made of recycled water

3.20 workstations need two water tanks, the upper water tank supply and the lower water tank is to receive leakage

4.Test water recycling

5.The water tank can be heated and temperature controlled

6.Pump Front pressure sensor: 0-0.6 MPA accuracy ± 1% f. S

7.Input Voltage: 0-60V adjustable

8.Outlet temperature sensor: 0-60 ° C -LRB-water tank)

9.Pressure sensor after pump: 0-1.6 MPA accuracy ± 1% f. S.

10.DC power meter: DC0-60V/0-5A

11.Equipment size: 1850X680X1720 unit: MM

12.Power supply: 220V 3.5 kw
