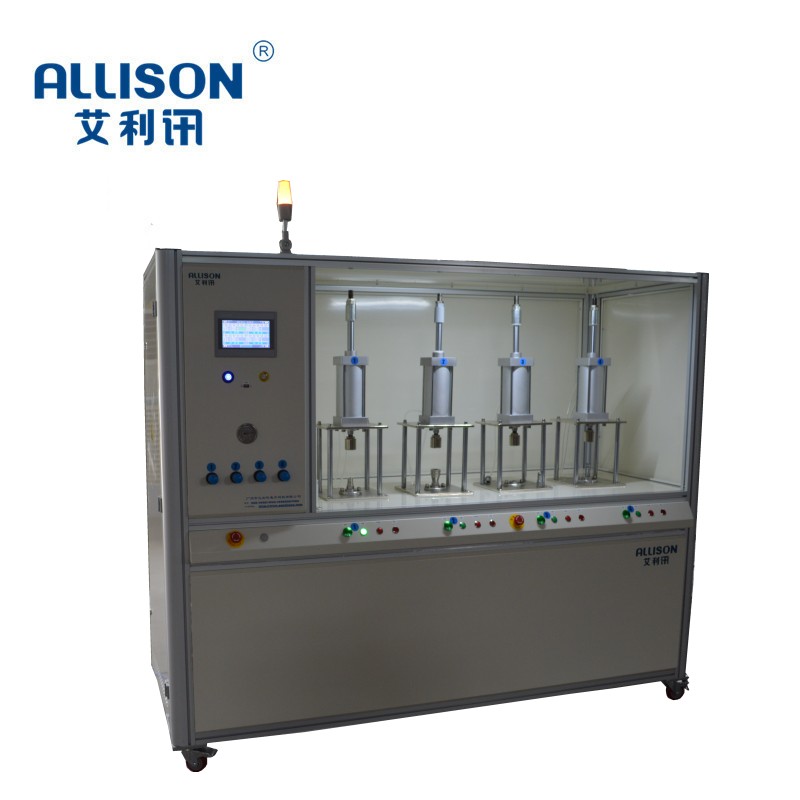

The utility model is mainly used for realizing the sealing test of the filter element of the water purifier. According to the relevant test standards, the test of the filter element sealing special testing. The structure of the frame is designed with single-layer and multi-position of aluminum profile. The appearance of the frame is reasonable, reliable, beautiful and generous

The user can define and choose all test data and test mode freely, and can automatically control and test the fault of the product, improve the work efficiency and reduce the hidden trouble of test operation, improve the detection speed and data accuracy

Technical parameters：

1.Number of stations: 4 stations for independent detection

2.Test pressure: 100-1200kpa accuracy 0.1 KPa

3.Leakage judgment: Upper and lower limit judgment

4.Detection accuracy: 0.1 level display units: pa, KPA, ML, L

5.Air Source: Compressed air

6.Display: 7-inch touch

7.Control mode: PLC Control Module (self-developed)

8.Pressure regulating system: precision type trimmer valve

9.Exhaust, constant, pressure, exhaust time: 0-60S/9999S independent can be set

10.Automatic judgment and display: Ng qualified OK tape sound and light alarm function

11.Voltage: AC220V 50Hz 0.75 kw

12.Equipment size: 1450X780X1550 unit: MM
