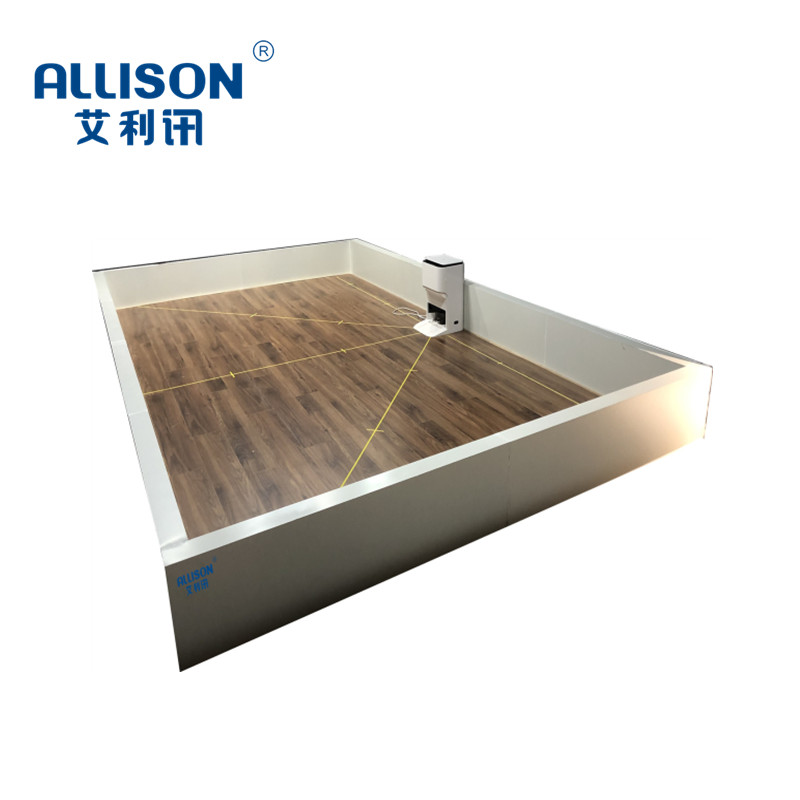

1.The sweep robot automatic backfill test room is designed according to the test method of item 6.3.6.1 in relevant standard QB/T4833 -2015.

Through the test area housing, power supply pedestal, the test floor logo and other major components.

2.The utility model is mainly used for the robot backfilling test of the test sweeping robot in a specified space through different position points. Start the backfill at different angles in the case.

Through the number of tests, failure times to test and record. The formula is used to back-up and docking of the sweeping robot, and the power is calculated and analyzed

Main parameters：

1.Test area size: 5000X3000X300  Unit：mm

2.Composition material：Hoarding, fireproof multi-layer board, outside white aluminum plastic    board

3.Number of tests：0-99999Time

4.Test angle ： 0  Of the project  45Of the project  90Of the project  135Of the project 180Of the project

5.Number of tests ：0-99999Time Can be set

6.Test time ：0-99999 Seconds  Of the project Time

7.Power supply：220V 50Hz 1.5KW
