Related parameters：

1.The drop ability test is applied to a positive aspect 800X800 mm (up to 2-3 times the maximum external size of the robot to fit the dimensions

2.Substrate 1200 * 1200 units: mm

3.The test height is 100mm

4.The base plate is equipped with movable casters for easy movement

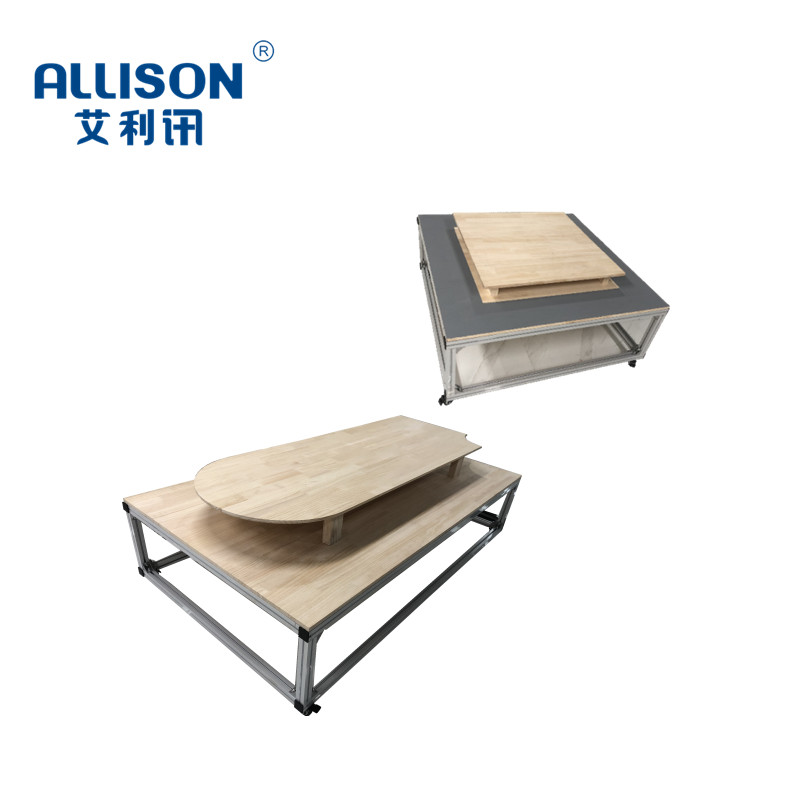

IEC 62849:2016, Chapter 9, standard manufacturing. The test platform is composed of base and steps, which are assembled by pine board of the same material.

1.Base test bench size: 2000X1150X1100 length x width x height unit: mm

2.The step size is R350 semicircle and consists of 1850X700X175 units: mm
