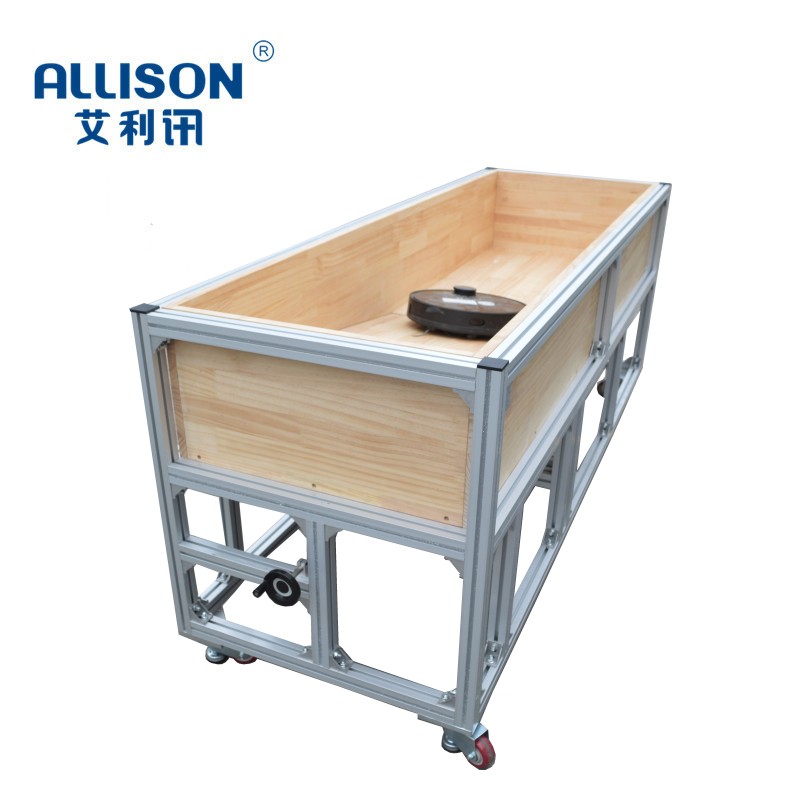

1.1 According to the requirements of customers, the equipment is mainly made of profiles and sheet metal assembly, the test platform is composed of 1M X 2m double-deck frame. The test equipment is divided into two halves, half of which can dynamically adjust the angle through program control. The angle between the two plates can be adjusted from 0 to 45 degrees, and the angle accuracy is 1 degree. The angle adjustment is set and controlled by the touch screen, test the product for slippage by manual monitoring  The equipment adopts the electric servo cylinder to adjust the test angle, through setting different angle test,

  judge whether the product slides back and carry on the comprehensive climbing obstacle performance evaluation test

1.2Using two platform structure, the angle between the two plates can be adjusted to 0-45 degrees, the maximum angle of 50 degrees

1.3The platform has three barriers, one every meter, and the height is adjustable independently (1cm -5 cm)

Technical parameters：

1.Platform size: 1MX2M

2.Angle adjustable range: 0-45 degrees adjustable

3.Test floor: pine, tile

4.Obstacle height adjustable: 0-50MM

5.Angle Drive: servo cylinder

6.Display: 7-inch touch screen display

7.Equipment power supply: 220V 1.5 kw

8.Equipment size: 2000X1000X650 unit mm
