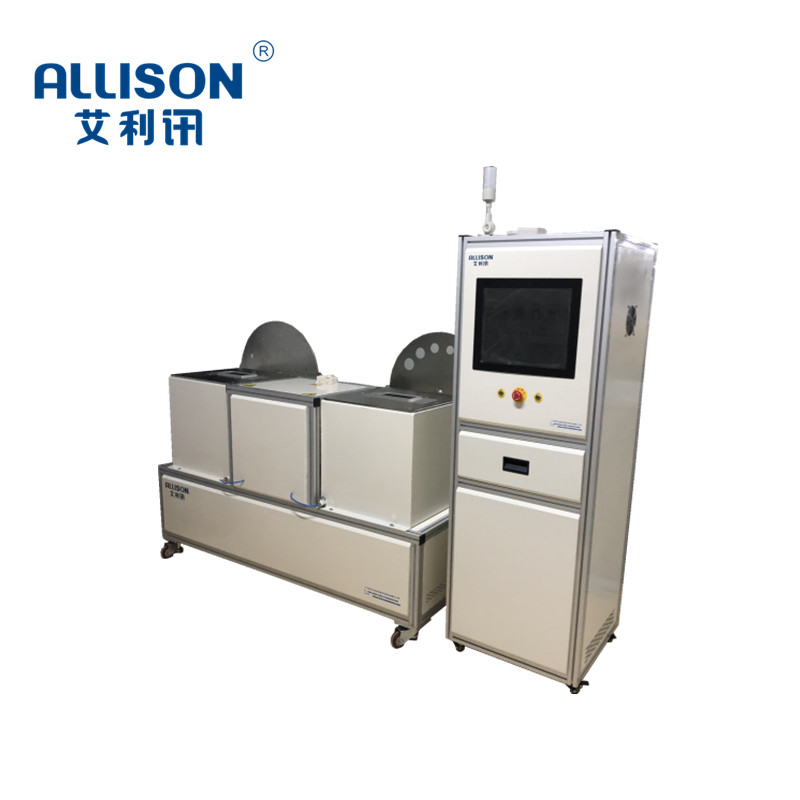

The sweeping robotic vacuum cleaner performance test platform is manufactured in accordance with IEC 60312, IEC 62885, f431-21 F558-17(European and n standards) . The air performance test platform adopts one-tow-two dual mode control and testing,

it synthesizes European Standard Test Mode and n Standard Test mode

The related test data can be exported through USB, the test table is widely applicable to the vacuum cleaner manufacturers and testing agencies to test the air performance of the vacuum cleaner

Main functions：

1.Through the control of servo motor, the inlet valve is adjusted automatically, and the data of input voltage, current, input power, power factor, frequency, output power and vacuum degree are collected by PLC.,

the related test data can be exported via USB

2.According to the test data, draw the vacuum, input power, suction power, efficiency and air volume curve

3.The device uses 17-inch touch computer display, can real-time display test electrical parameters, maximum/minimum air volume, vacuum, input power, inhalation power, and efficiency;

Maximum/minimum vacuum, input power and other test parameters and record

4.The data tested can be stored and output test reports and curves as required by the user

5.Equalizer box: manufactured to standard

6.Temperature compensation and modification: according to the IEC60312 in 5.2.8.4 atmospheric pressure density correction
