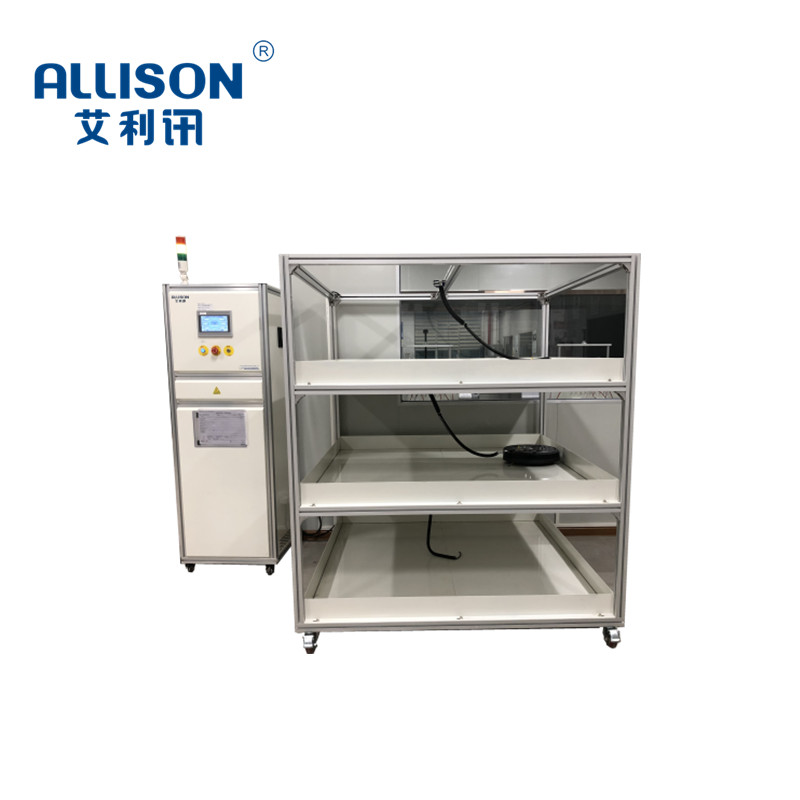

Sweeping machinery comprehensive ability testing machine. Through three different floor simulation walking test. The life test of simulation walking,

The life test of photoelectric sensor and the impact test are carried out for the sweeping robot. The evaluation experiment of the sweeping robot'

S comprehensive use condition is carried out. The testing machine is controlled by PLC program, the relevant values are set by 7-inch touch screen,

And the relevant test data can be exported by USB.

Technical parameters:

1.The size of the robot life test frame is 1.8 m high × 1.5 m wide × 1.5 m long

2.Three stations can run independently

3.Test flooring: marble tiles, solid wood flooring, short wool ASTM LEVELLOOP carpet, smooth pine planks

4.Each layer of the test device is surrounded by crash barriers, which have enough strength to meet the impact of the robot in the process of running

5.The three robots in each unit are powered by a DC power supply

6.Test station: 3 stations

7.The size of the test-bed is 1500 × 1500mm

8.Supply voltage: 0-36V (DC) current: 0-20A

9.Detection: current, voltage, power

10.Control mode: Mitsubishi PLC 7-inch touch screen display

11.Equipment power supply: 220V 3.5 kw

12.Equipment size: 2000X1550X1650 unit mm
