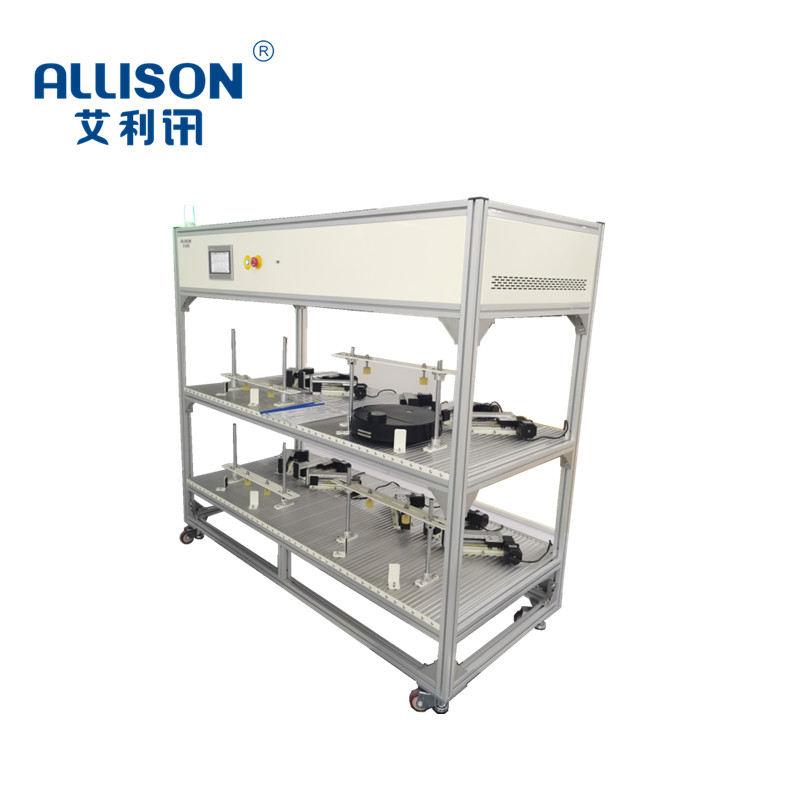

The anti-collision life testing machine of sweeping robot is mainly suitable for the durability impact test of the bumpers of sweeping robot

By means of multi-angle impact, the durability of the bumper and any possible damage are evaluated.
The related energy number is set through the 7-inch touch screen to set and display the related test data.

Life Test Equipment Adopts PLC and touch screen control system, through PLC program control, respectively,

the front, middle and back three impact plate program test settings, real simulation of actual use.

The test equipment runs stably and is easy to maintain

Technical parameters:

1.Test station: 4 stations

2.Test angles: minus 45 degrees, zero degrees, 45 degrees

3.Test run: 0-100mm can be set arbitrarily

4.Control Interface: 7-inch touch display

5.Control mode: Single Point Impact/multi-point linkage composed of impact

6.Test impact plate: aluminum metal material

7.Test Speed: 0-300mm/sec adjustable

8.Distance Adjustment: touch screen, Gear setting

9.Number of tests: two hundred thousand, any setting

10.Driving mode: servo motor

11.Impact interval: 0-100S adjustable 10, power: 220VAC, 3.5 kw
