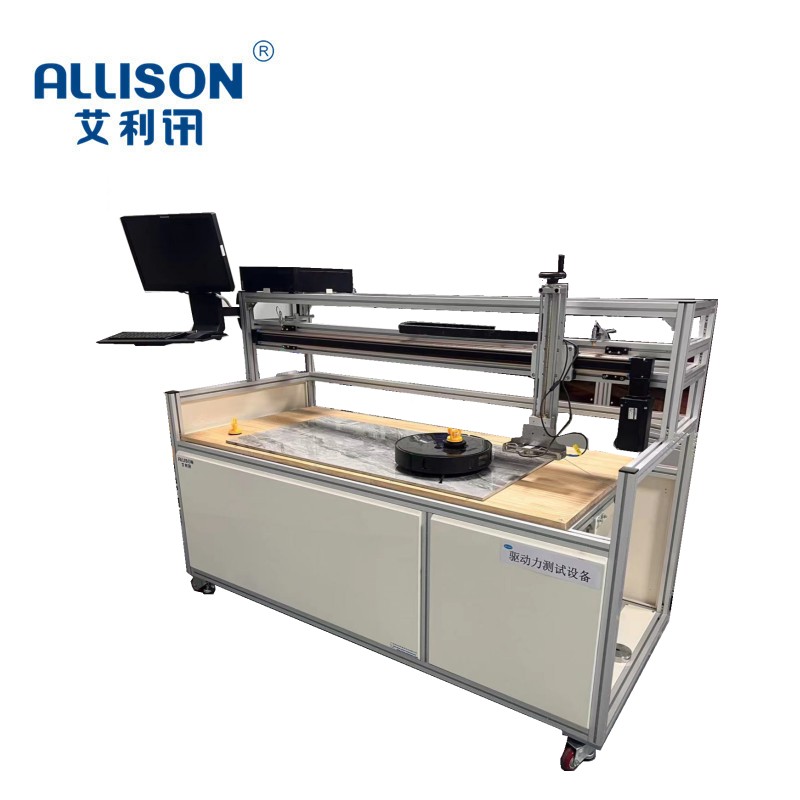

Driving Force test equipment, according to the relevant standards and customer test requirements and design. Through, the test force sensor, linear guide rail, test weights, test floor, force data acquisition control system and other major components

The utility model is mainly used for testing the maximum driving force produced by the sweeping robot passing through different floors in a specified space range. Through 17-inch display and PLC for related data recording and force acquisition. Real-time recording of the relevant test driving force values, and display in a curvilinear manner. Related test data can be exported via USB data. In order to facilitate the testing personnel to sweep the floor robot's driving ability to carry on the analysis and the research

Major components：

1.Test station: Single Station

2.Test floor: one glass, one carpet, one non-slip floor tile, one smooth floor tile

3.Force value collection range: 0-50N

4.Detection and timing time: 0-999999(hour/minute/second) can be set arbitrarily

5.Test Times: 0-999999 times can be set

6.Test parameters: force value, time, count

7.Test data display: numerical value, curve display

8.Test area 1.5 M * 0.7 m

9.Control mode: 17-inch display, industrial computer control

10.Data Export Method: USB

11.Weight specification: 1n 2n 5n 10N 20N 30N

12.Power: 220V 50Hz 1.5 kw
