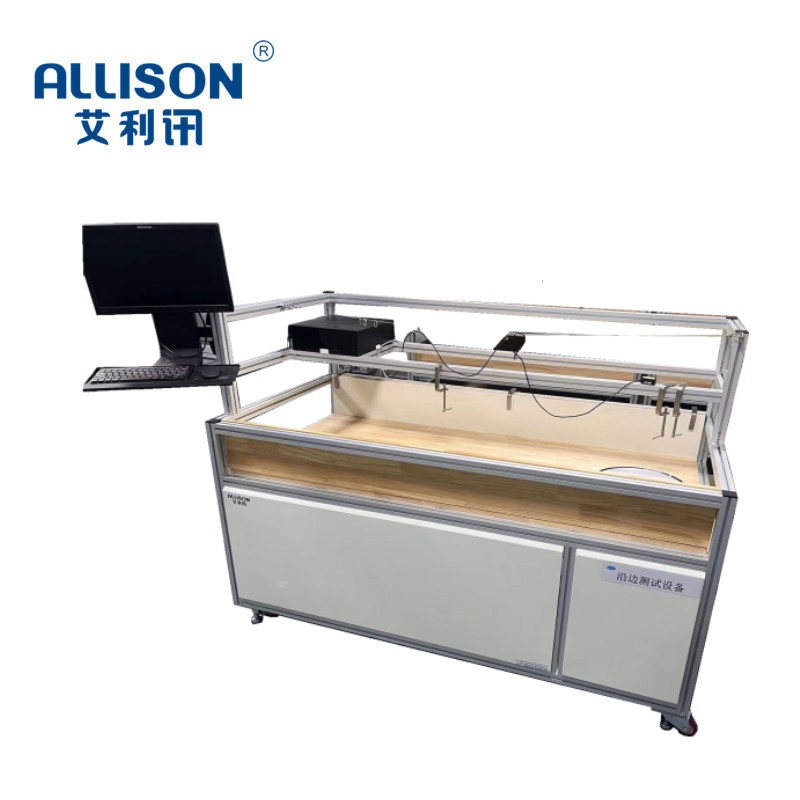

He edge testing equipment is designed according to the testing principle of relevant international standard GBT 40229 -2021

and IEC62849 -2016. It is composed of testing signal instrument, high definition recording camera, testing instrument base, bottom plate,

 acquisition control system and so on

The utility model is mainly suitable for testing and recording the minimum obstacle avoidance distance and speed of the test

sweeping robot in a specified space. The related test data and walking graph can be exported into USB data through the control system. I

n order to facilitate the test personnel to sweep the robot edge dust ability data calculation and analysis

Major components:

1.Test station: Single Station

2.Test cabinet: Pine Board 4040 aluminum profile

3.Acquisition Speed: not less than 10KHZ

4.Detection and timing time: 0-999999(hour/minute/second) can be set arbitrarily

5.Test Times: 0-999999 times can be set

6.Display graphic: two-d plane

7.Test data display: numerical values

8.Test side board: Pine Board

9.Color Board: Black, log, white, 18% gray

10.Control mode: 17-inch display, industrial computer control

11.Data Export: USB 11.0. Power: 220V 50Hz 1.5 kw
