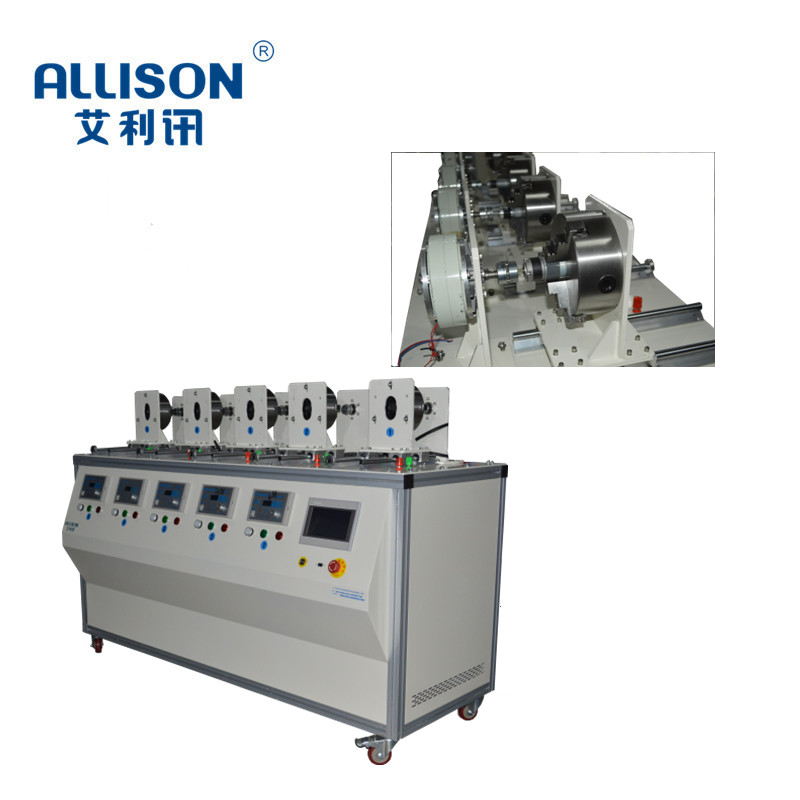

Rolling brush motor life testing machine, mainly used for rolling brush motor torque loading durability testing. The life of the product is verified by a long time aging test under the load

The testing machine is controlled by PLC program, and the tested rolling brush motor is tested under simulated loading by external magnetic powder brake. The motor under test was

subjected to a long time/interval torsion test with an adjustable load of 0-50Nms. 0-60V to provide independent power supply to each station, and monitor the current and voltage of each station. The related detection data is exported via USB. The testing machine has the advantages of strong generality, simple operation, convenient control and low failure rate

Main technical parameters:

1.Test station: 1-10 station can be selected

2.Detection Voltage: AC: 0-60V current: 0-20A

3.Load loading: magnetic powder brake

4.Test content: load life test of scrubber motor

5.Electric parameters: current, voltage, power, torque

6.Test period: 0-99999 adjustable

7.Count Range: 0-999999

8.Torque: 0-50Nm adjustable

9.Drive mode: DC power supply independent power supply

10.Equipment Dimensions: 1500X750X1350 unit: mm

11.Equipment Power: 220V 1.5 kw without power supply
