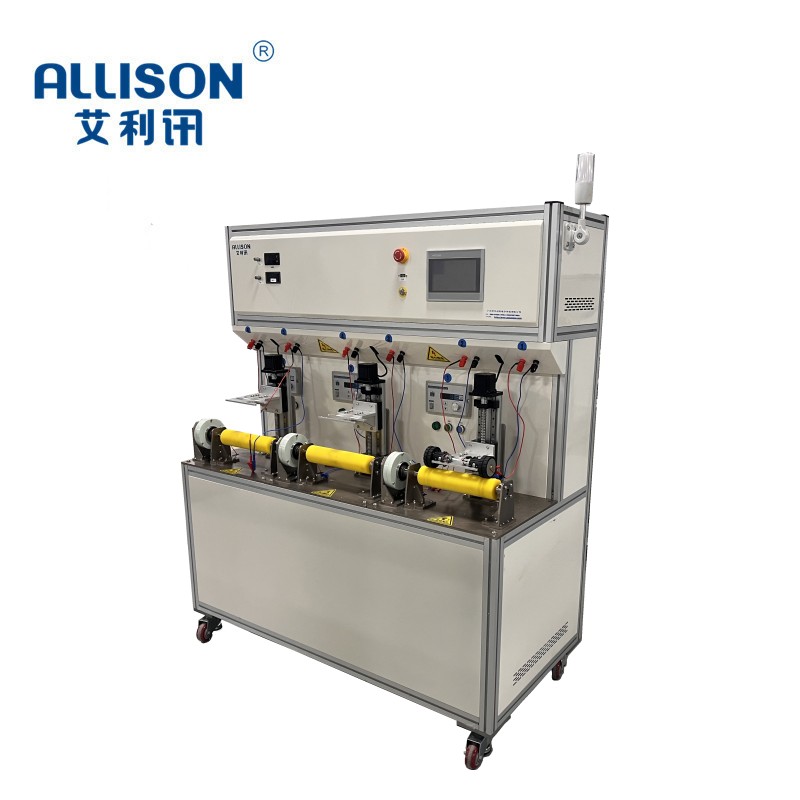

The utility model relates to a life test stand for the drive wheel of a sweeping robot, which is suitable for the life test of the drive wheel

Of a sweeping robot under the simulated actual use. Through PLC control, 7-inch touch screen to set. DC power supply is used to supply

Power to the sweeping robot, magnetic powder brake is used to test the durability of the driving wheel. The related test data are exported by

USB. The utility model has the advantages of strong universality, simple operation, convenient control and low failure rate.

Main technical parameters:

1.Test station: 3 stations

2.Supply voltage: DC: 0-60V supply current: 0-60A

3.Load mode: magnetic powder brake

4.Test content: Driving Wheel Life Test

5.Load Range: 0-5N.M adjustable

6.Test cycle: 0-99999999/adjustable

7.Adjustable Stroke: 0-100MM adjustable

8.Fixed Way: Quick Hand Clamp

9.Drive mode: DC power supply independent power supply

10.Drive motor: Servo stepping

11.RPM detection range: 0-5000 rpm

12.Control mode: PLC control 7-inch touch screen display

13.Equipment power supply: 220V 3.5 kw

14.Equipment size: 1800X650X1450(length x width x height) unit: mm
