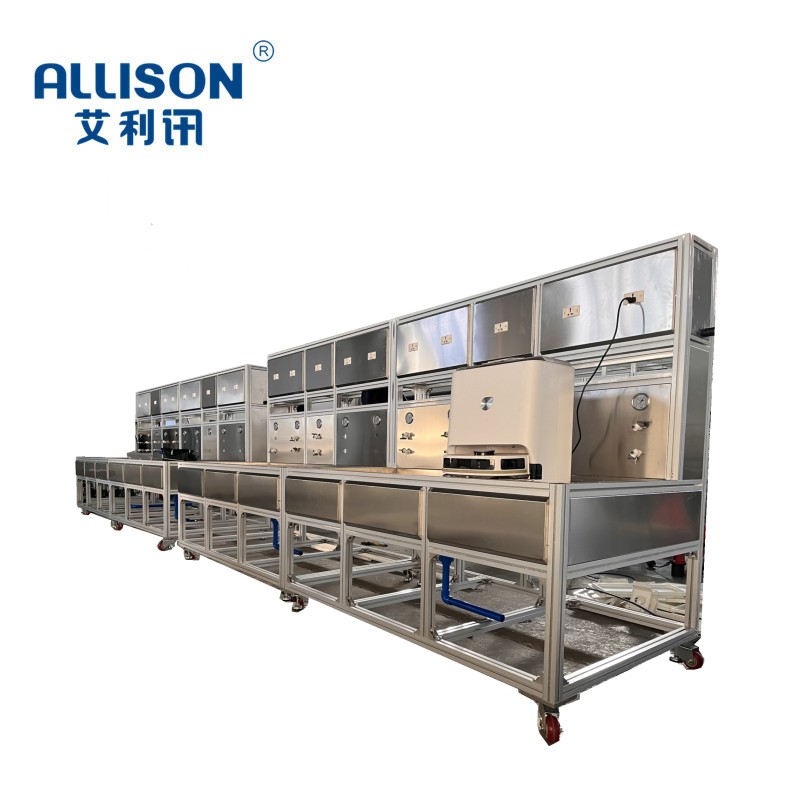

The upper and lower water life test bench of sweeping robot base station is suitable for suction-washing integrated sweeping robot base station in the market

Through the interval time and test times, the test base station for the specified time and the number of specifications of the durability of the water test, the real

 simulation used in the use of the operating conditions. PLC program control and 7-inch touch screen real-time display related test data and settings. The base

Is powered by 220V/frequency conversion power supply, and the test stations are simulated with water pressure of 0.1-1.0 mpa, and the self-priming pump is simulated to pump water. Test time, interval time and test times are used to control the time/times of adding water and the time/times of pumping water respectively. In the test process, through the PLC and touch screen control and display, real-time display of related test data voltage, current, water times, water times, water times, pumping time and other data

Main technical parameters:

1.Test station: 10 station

2.Supply/detection voltage: AC: 0-300V current: 0-20A/station

3.Water supply: tap water, water pump constant pressure plus water

4.Test content: Base Station Water Life Test

5.Electric parameters: current, voltage, power, water frequency, water frequency

6.Water supply pressure range: 0.1-1.0 mpa accuracy: 0.5 class

7.Test cycle: 0-99999 times adjustable

8.Count Range: 0-999999 times adjustable

9.Water time/sewage pumping time: 0-999999 times adjustable

10.Water level control: electronic high and low water level detection

11.Water tank: 200L clear water tank 200L sewage tank

12.Control mode: PLC control 7-inch touch screen display

13.Equipment size: 14650X850X1650 unit: MM
