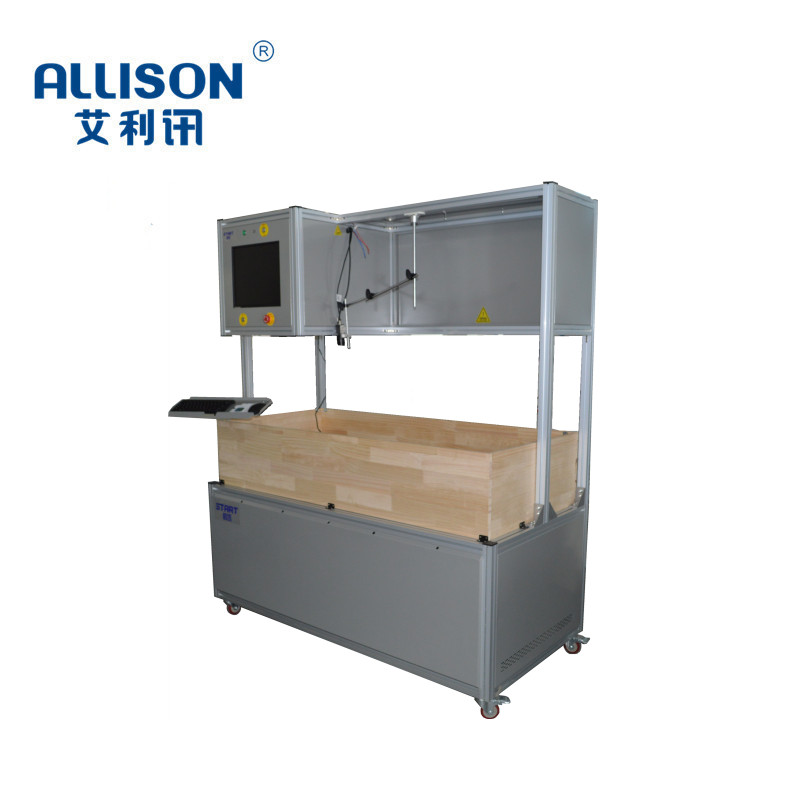

1.The obstacle avoidance test equipment of sweeping robot is designed according to the obstacle avoidance test item 10 of relevant international standard GBT 40229 -2021 IEC62849 -2016. Through, the test signal instrument, high-definition recording camera, the tester base, force sensor, base plate, acquisition control system and other major components

2.The utility model is mainly used for testing the minimum obstacle avoidance distance and recording the maximum force value in a specified space for a test sweeping robot. Related test data and obstacle avoidance graphics can be exported into USB data through the control system. In order to facilitate the test personnel to sweep the robot's obstacle avoidance ability data calculation, and analysis

3.Acquisition Speed: not less than 10KHZ

4.Detection and timing time: 0-999999(hour/minute/second) can be set arbitrarily

5.Test Times: 0-999999 times can be set

6.Force range: 0-100N

7.Test data display: numerical values

8.Ruler: 0-500mm

9.Control mode: 17-inch display, industrial computer control

10.Data Export: USB 11.0. Power: 220V 50Hz 1.5 kw
