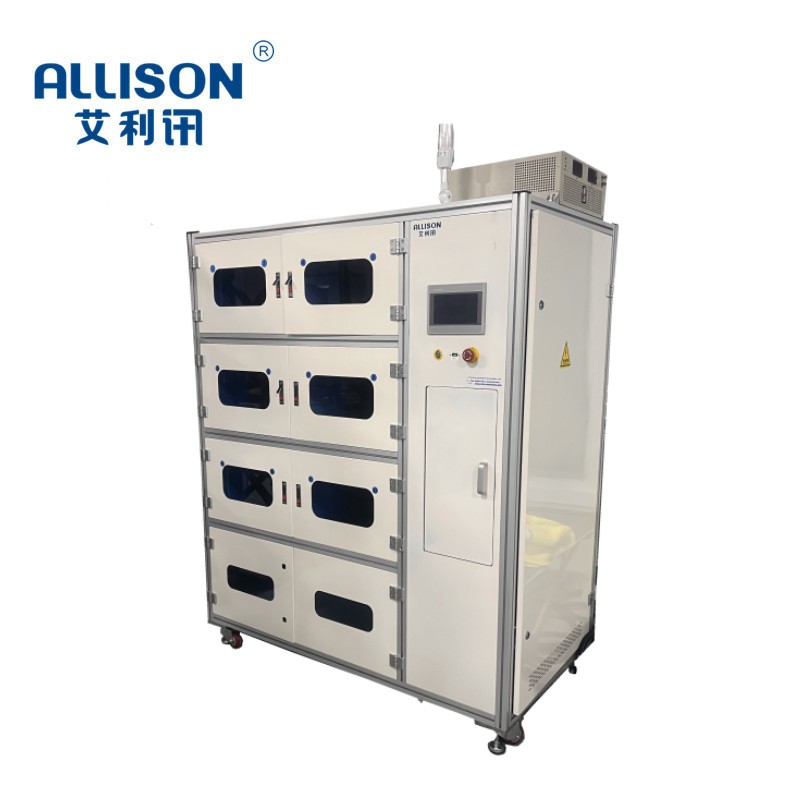

The battery charging and discharging life testing machine is used to monitor the long time and interval time of the battery products

Of the sweeping robot to achieve charging and discharging tests. Through the external program-controlled power supply, the 20-station

Battery was simulated and actually charged  The aluminum resistance acts as a load to discharge the battery. The testing machine adopts

PLC and current acquisition module to charge 20 channels and judge the current change of discharge. The system is independently developed

By our company, and the related parameters are set. PLC real-time display and record the consumption of voltage, current and power changes,

As well as charging time and times and data recording and USB data, export

1.Equipment Station: 20 stations

2.Touch Screen: 7-inch color touch screen, 1

3.PLC: Mitsubishi, Japan, memory function for data blackout

4.Input Voltage: 0-60 V adjustable, output DC0 -36 V adjustable

5.Current detection range: 0-20A

6.DC power supply: 0-36V 300A

7.Time Range: 1-99999 hours/min/sec

8.Number of tests: 1-999,999

9.Data recording function: charge time, charge times, discharge time, discharge times, voltage, current and other data

10.Safety Protection: automatic stop function of smoke alarm

11.Detection Function: battery life

12.Equipment size: 1850X750X1650 unit MM
