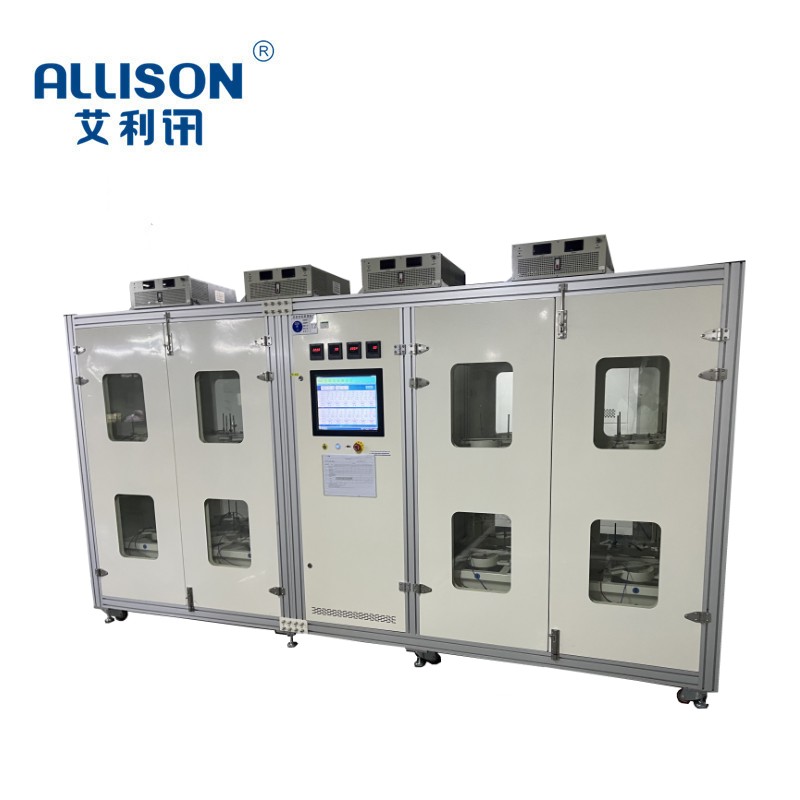

Motor plugging aging test equipment, suitable for cleaning electrical appliances in the vacuum cleaner motor, fan, such as motor life and performance testing. It is mainly aimed at the durability life and plugging aging test of AC/DC motor under working condition. The main components of motor life test room are test cabinet, suction pipe, central control system, exhaust system, air intake system, temperature monitoring and so on. The whole testing and monitoring inside the test room is controlled in real time by the central control cabinet control system and the test environment monitoring  The test room consists of 2 test cabinets, which independently test and monitor 36 motors. Central control system through the 17-INCH display, by the Microcomputer + mechanical control instruments with the entire test room control. Each test stand has an alarm for the abnormal in the process of product life and performance detection

Main parameters:

1.Turn-off time: 999999(s, M, H) adjustable

2.Range: 9999999(h) adjustable

3.Electric parameter display: current, voltage, power

4.The orifice plates are 10 mm, 13 mm, 15 mm, 16 mm, 19 mm, 0.5 inch, 0.375 inch,-- 0.25 inch, 0.125 inch. Material is 2mm thick stainless steel plate,

5.Test current: 1-30A (custom made)

6.Work Alarm: voltage, current, abnormal power, end of test

7.Related Data Record: electric parameter value, running time

8.Control mode: 17-inch touch screen, Mitsubishi PLC control

9.Monitor: 17-inch touch type

10.Test station: 18 station/station

11.Equipment power supply: 220V 8.5 kw
