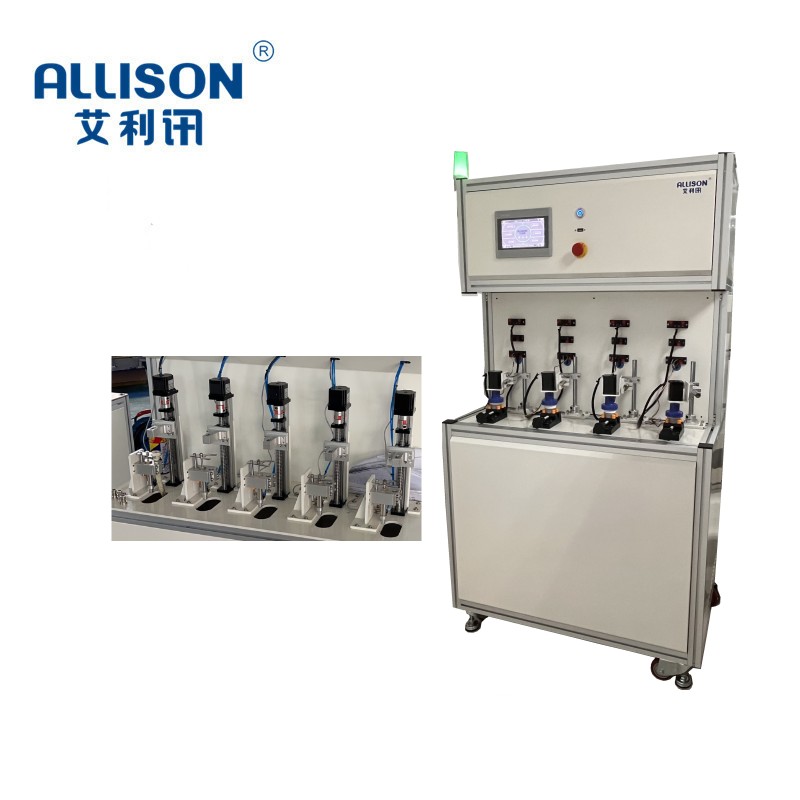

The utility model is mainly used for the tripping durability test of the quick-inserting water inlet pipe, which can test the quality reliability, and is suitable for the tripping and breaking/connecting ability aging test of the inserted water inlet pipe. Take the stepping motor as the driving source, drive the jig to insert, pull out and release, so as to complete the“Open and close” reciprocating life action, through PLC control, with flexible fixture, the equipment can satisfy the tripping life test of many kinds of water inlet pipe of washing machine. It has strong versatility, simple operation, convenient control and low failure rate.

Main technical parameters:

1.Equipment Station: 5 stations

2.Touch Screen: 7-inch color touch screen

3.PLC: Mitsubishi, memory function for data power failure

4.Motor: step, pneumatic

5.Speed: 0-20 bpm

6.Stroke: 0-30MM adjustable

7.Test data: 0-999999S

8.Test Time: 0-999999S9, Countdown Time: 999999(available)

9.Starting mode: Servo Drive

10.Test mode: continuous/spaced

11.Test equipment outline size: about 900X450X480(high) MM

12.Equipment power supply: 220V 1.5 kw
