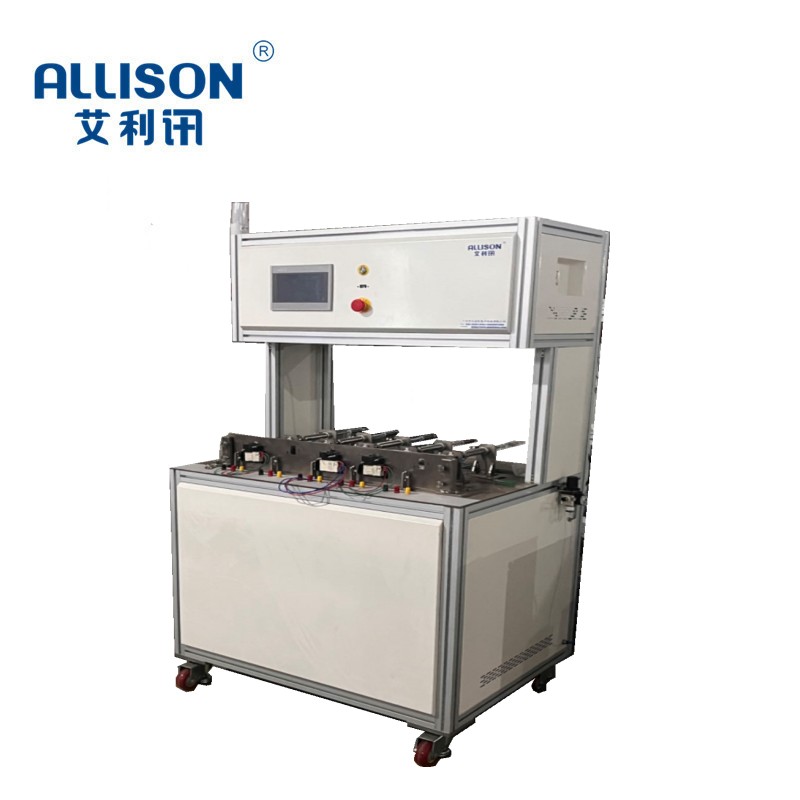

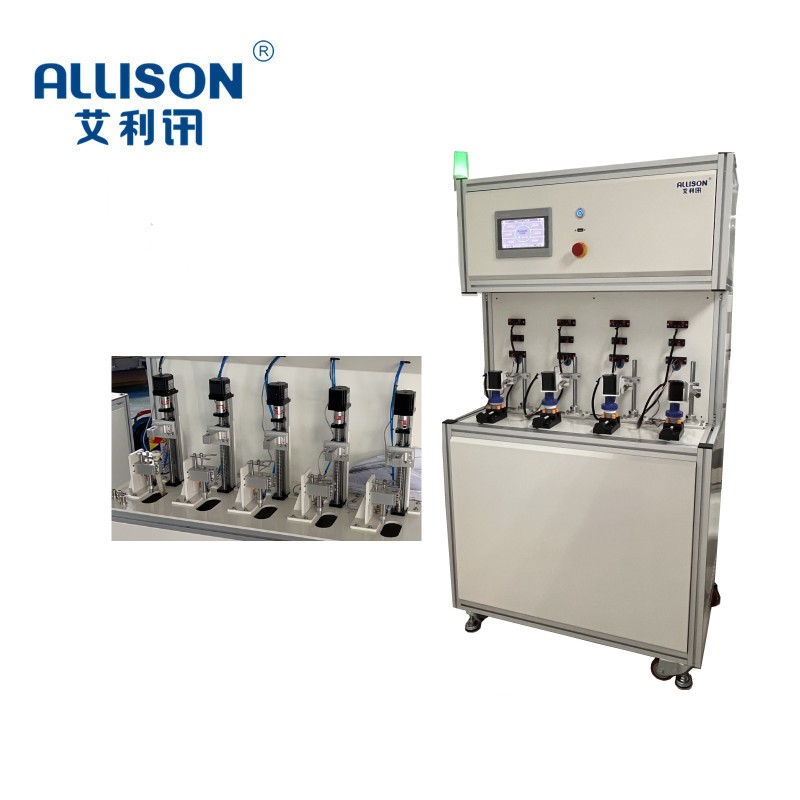

The electromagnetic door lock/PTC door lock endurance testing machine is made according to the national related industry standard and enterprise industry standard. It is controlled by PLC program through 7-inch touch screen display, the utility model is suitable for the electromagnetic door lock/PTC door lock of the washing machine on the market to carry out the durability life test. Through 7-inch screen for simultaneous display, independent and set the number of tests, test time and other parameters. Stable operation, simple operation, no special operation, simple and convenient maintenance.

PLC touch screen programming operation control, through the touch screen set the relevant test times, on-off time, interval time, test cycle and other settings.

Touch screen display test times, counter can be set to reach the number of automatic shutdown, with power-off memory protection function

Main technical parameters:

1.Test Station: 5-10 station

2.Control software: PLC programming software, touch screen control

3.Working mode: Electromagnetic Door Lock Test Mode/PTC Door Lock Test mode

4.Counting function: 0-999999999 programming settings

5.On-off time function: 0-99999999s programming settings;

6.Power supply: AC220V 50hz; 2.0 KW9, weight: About 80KG

7.Equipment Size: about 1450X750X1450 unu: MM
