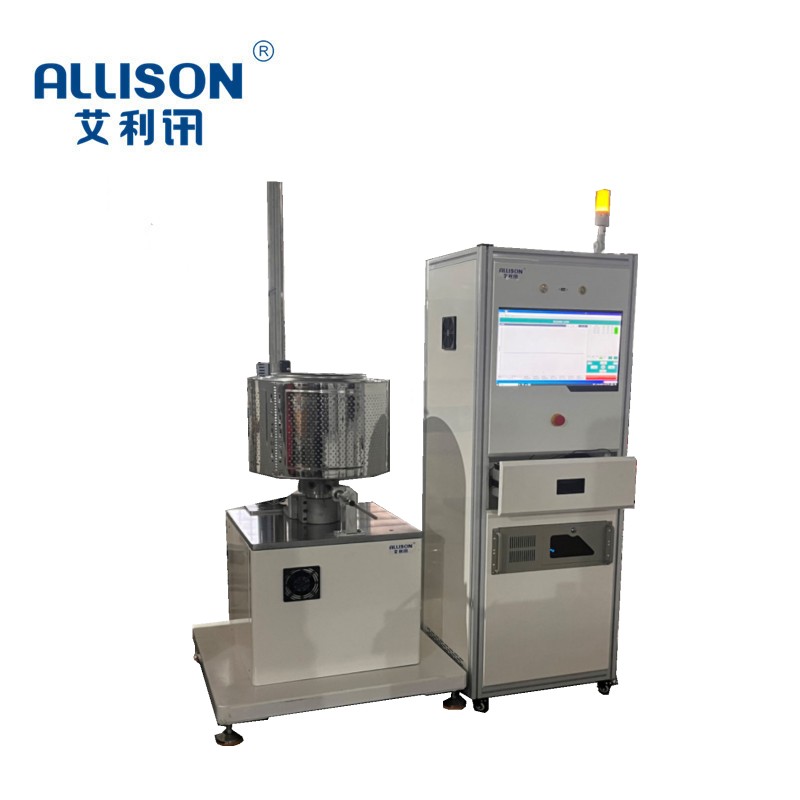

1.1Washing machine roller end shaft run-out testing machine, equipment composition: the equipment is mainly divided into three parts: mechanical fixture part, measurement and control part, operating table

1.2It adopts chuck-type automatic fast fastening method, and the positioning is firm

1.3Parameter setting function: can set the motor speed (maximum speed 1800R/min) , running time, measuring height, measuring distance, jump qualified value, etc. . Real-time display function: displacement, speed data acquisition, 2D waveform data display, synchronous display waveform graphics and real-time data

1.4Data storage, analysis function: can record, store, view, print test records, with non-conformance alarm warning system, can automatically display test curve and automatically form test report, automatic storage

Key parameters:

Linear Range: 20mm (range start: 30mm, midpoint: 40mm, End: 50mm)

Linear Range: 20mm (range start: 30mm, midpoint: 40mm, End: 50mm)

Linear Range: 20mm (range start: 30mm, midpoint: 40mm, End: 50mm)

Protection Level: IP67 Shock 15G, Vibration 2G

Signal Output: 4-20mA power supply: 11-30VDC

Servo motors and drives

Power supply: single-phase 200-255VAC rated power: 750W

A 19-inch liquid crystal display

Test data can be saved automatically and exported
