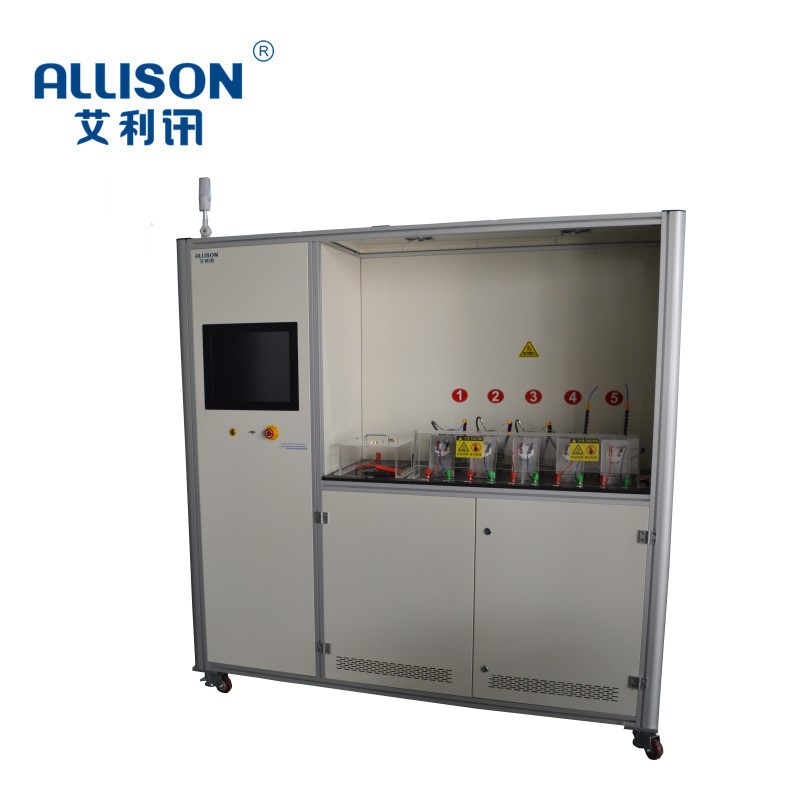

The life test bench of water level switch meets the requirements of GB14536.18, GB16915, GB15092.1, IEC61058 and UL. It can be used for mechanical durability life test of water level switch, the on-off aging life test of water level switch is realized by simulating water pressure with air pressure. In the normal temperature environment, through the system setting and control, a long-time on/off life testing of the tested inlet valve. The whole equipment system is controlled by FX Mitsubishi PLC Program, Manual Quick Installation, one-click Start Test mode

Main technical parameters:

1.Working Power: AC? 220 volts? ± 10% , 50 Hz

2.Working mode: pneumatic

3.Air pressure adjustable range: 0-10Kpa adjustable

4.Test station: 20 stations

5.Test cycle time: 1 ~ 99999s can be set

6.Test cycle time: 1 ~ 99999s can be set

7.Test rate: 15-30 times/min adjustable

8.Counter: 0-999999 preset,

9.Signal acquisition source: Io Point on and off

10.Intelligent discrimination function: continuous on or off/to set the number of times when the alarm prompt

11.Control mode: 7-inch Touch Screen PLC control

12.Equipment Dimensions: 880X700X1650 unit: MM

13.Equipment power supply: 220V 2.5 kw
