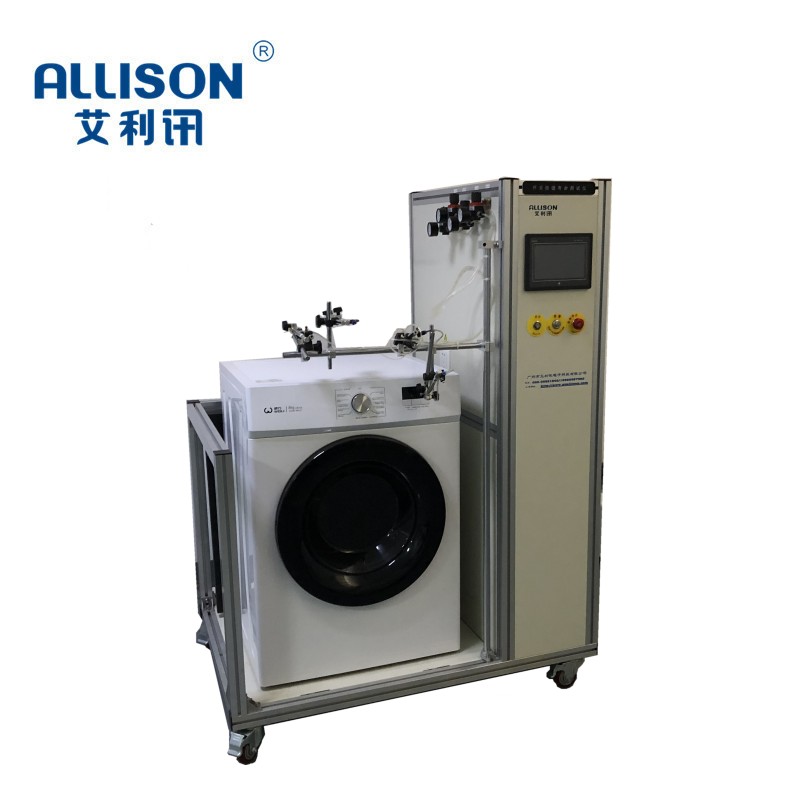

The switch door life testing machine is mainly used to test the durability of the door body and the door hinge, and to test the quality reliability of the door body and the door hinge. Take the stepping motor as the driving source, drive the jig to make the reciprocating rotation movement, thus complete to the cabinet door“Open and close” the reciprocating life action, through the PLC control, with the flexible jig, the action of opening and closing the door is simulated. The equipment can meet the testing requirements of many kinds of washing machine/electric oven doors, with strong versatility, simple operation, convenient control and low failure rate

1.With door hinge and handle durability test function (left open direction) to support electromagnetic door lock -LRB-start and stop button linkage operation)

2.Take into account the following test functions

3.Drawer pull durability test function (including push-bomb drawer)

4.Knob rotation durability test function

5.Push-button durability test features (including mechanical and touch buttons) to support multi-button programming operations

Main technical parameters：

1.Equipment Work Station: Single Work Station

2.Touch Screen: 7-inch color touch screen

3.PLC: Mitsubishi, Japan, memory function for data blackout

4.Motor: step-drive

5.Opening and closing speed: opening and closing speed 1.5 m/s ± 50% adjustable

6.Test angle: 1300 max

7.Opening and closing speed: 0-10 times/min adjustable

8.Opening and closing mechanical arm test force: the maximum opening force can be adjusted by 10n-200n

9.Opening and closing mechanical arm test force: the maximum opening force can be adjusted by 10n-200n

10.Starting mode: Servo Drive

11.Switch mode: left and right door/up and down door/front and back sliding door

12.Test equipment dimensions: about 900X450X1700(high) MM

13.Equipment power supply: 220V 1.5 kw
