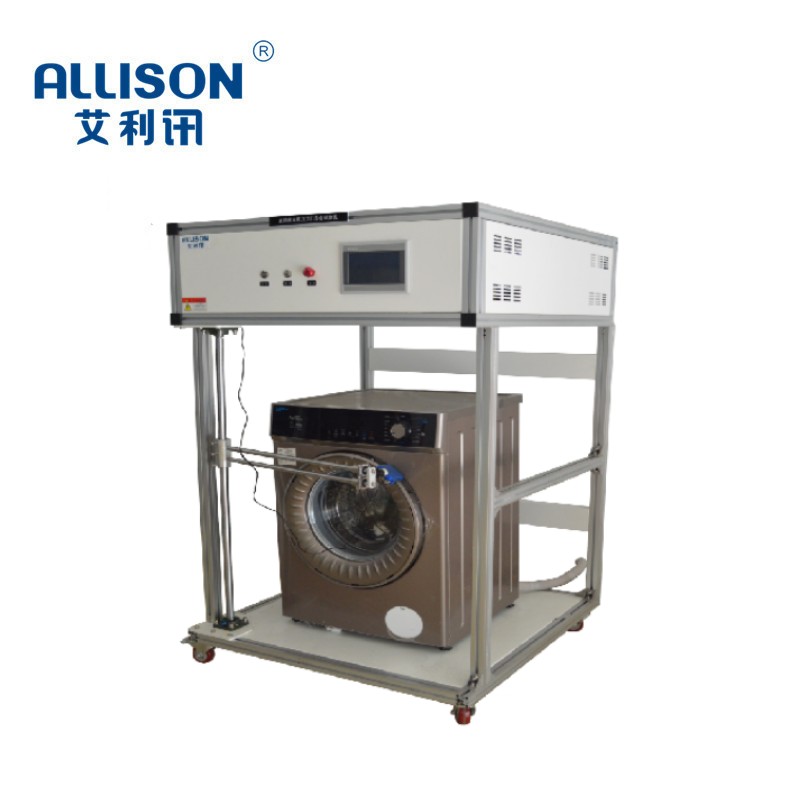

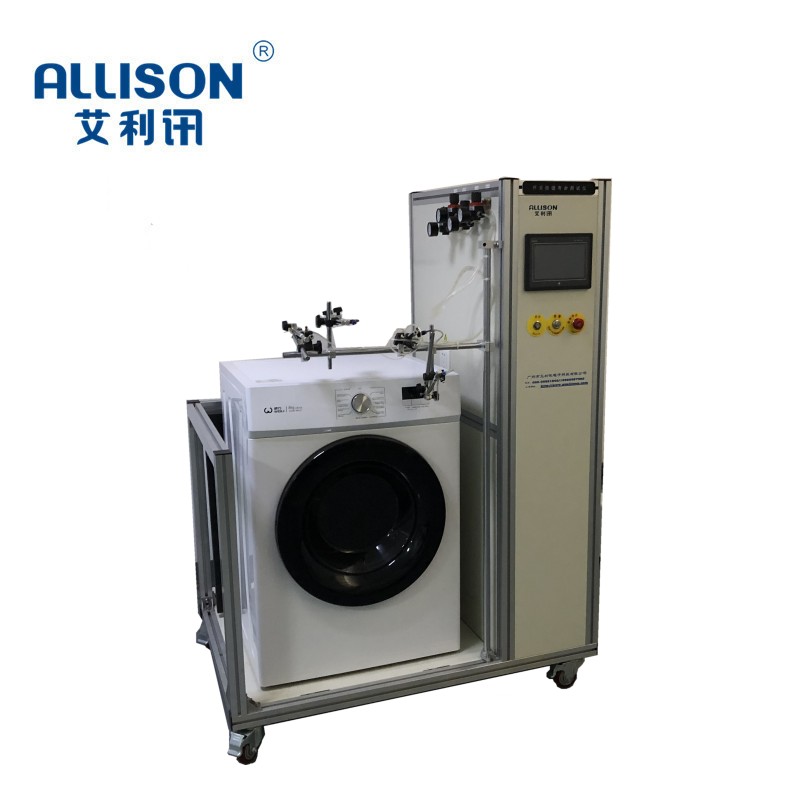

The washing machine key life testing machine is suitable for the durability testing of the buttons on the touch panel, mechanical key and other related control panel. PLC and touch screen control system, stable operation, simple and convenient maintenance

Through the PLC program control, can carry on the single-point button/multi-point button linkage operation and the program cycle action. Real simulation of the use of button linkage. The durability of the whole machine key life test

Technical parameters:

1.Test station: Single Station

2.Test 4-6 keys per station, program cycle action

3.For different operation panel size, fixture can be replaced

4.Control Interface: 7-inch touch display with USB data export function

5.Control mode: Single Point Control/multi-point Linkage program control

6.The test head is made of wear-resistant and insulating silica gel/touch metal material

7.Test Speed: 10-40 BPM adjustable

8.Action travel: adjustable (depending on the product)

9.Test times: 1-999999 arbitrary settings

10.Power: 220VAC, 2.5 kw

11.Electrification test: current detection

12.Supply voltage: 0-250V adjustable

13.Equipment Size: 1200X650X1650MM
