Reference Standard:

GB/T34549-2017 sanitary ware, intelligent toilet

GB/T23131-2019 household and similar use electric toilet seat

  GB 38448-2019 intelligent toilet energy efficiency limited value

 CBMF15-2016 intelligent toilet

GB/T34549,9.44 mechanical strength test, JCT 764-2008, toilet

seat swing test: Toilet seat open and close test; 5.4.6,6.11:

Toilet seat drop function life test; 5.4.7,6.12: Toilet seat pressure

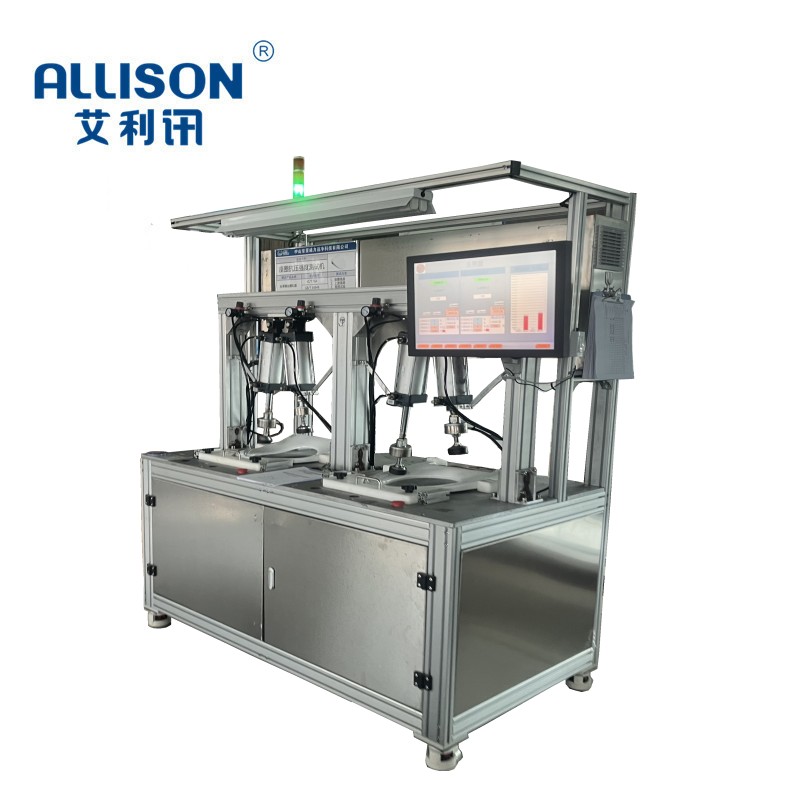

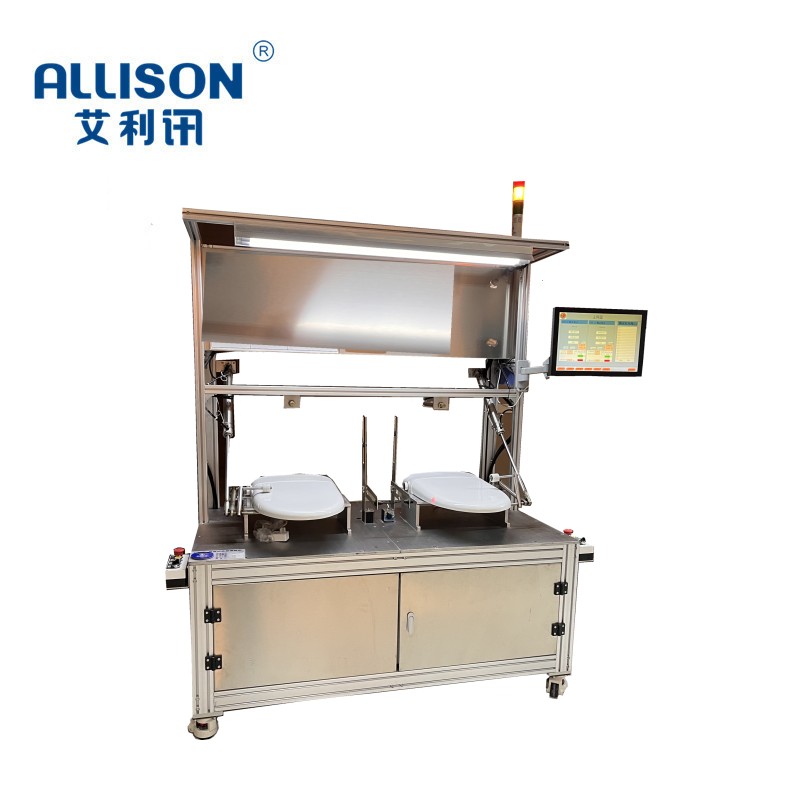

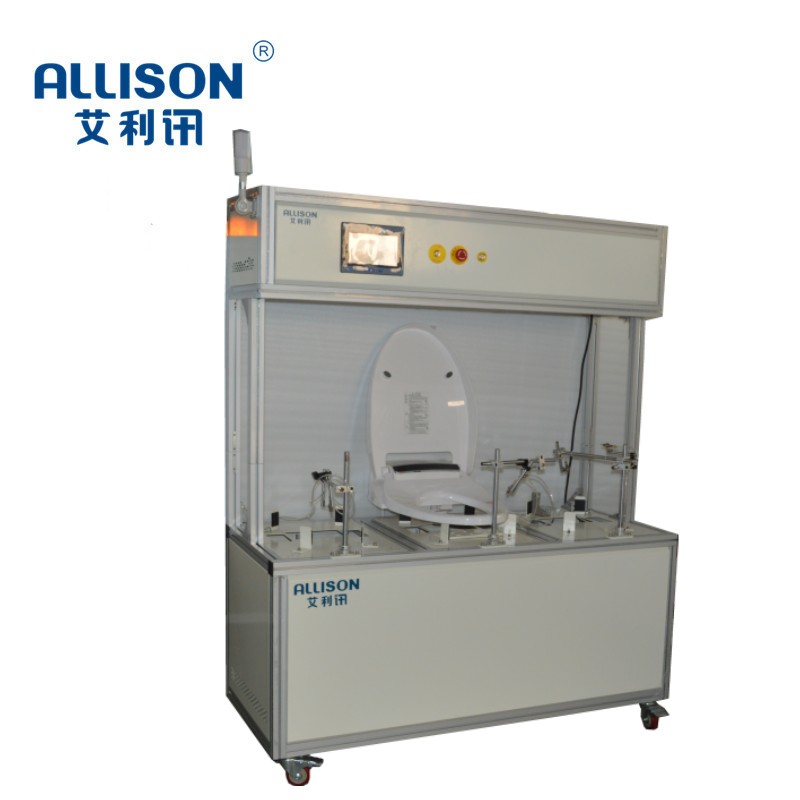

test and other related standards. Flip-top life test stand. It is

mainly suitable for testing the mechanical strength and installation

strength of the intelligent toilet seat cover integrated machine,

separated machine and hanging intelligent toilet seat, test the

durability of the toilet ring, cover plate and mounting parts of the

intelligent toilet. The test bench adopts Mitsubishi PLC + 7-inch touch

screen control, adopts servo stepping motor as the main power source,

 and realizes multi-angle open and close cover test

Main technical parameters:

1.Test Station: 2-4 station

2.Time Range: 0-99999 seconds

3.Timing accuracy: ± 0.1 seconds

4.Pressure regulation: pneumatic

5.Set Range: 0-999999

6.Control Mode PLC control 7-inch screen

7.Angle Range: 0-120 degrees adjustable

8.Control mode: 17-inch industrial control one touch screen

9.Power supply: 220V 1.75 kw

10.Remark size: 1350X850X1850 unit: MM
