Reference Standard:

GB/T34549-2017 sanitary ware, intelligent toilet

GB/T23131-2019 household and similar use electric toilet seat

GB 38448-2019 intelligent toilet energy efficiency limited value

 CBMF15-2016 intelligent toilet

       Andclose test; 5.4.6,6.11: Toilet seat drop function life test; 5.4.7,6.12: Toilet seat pressure test and other related standards.

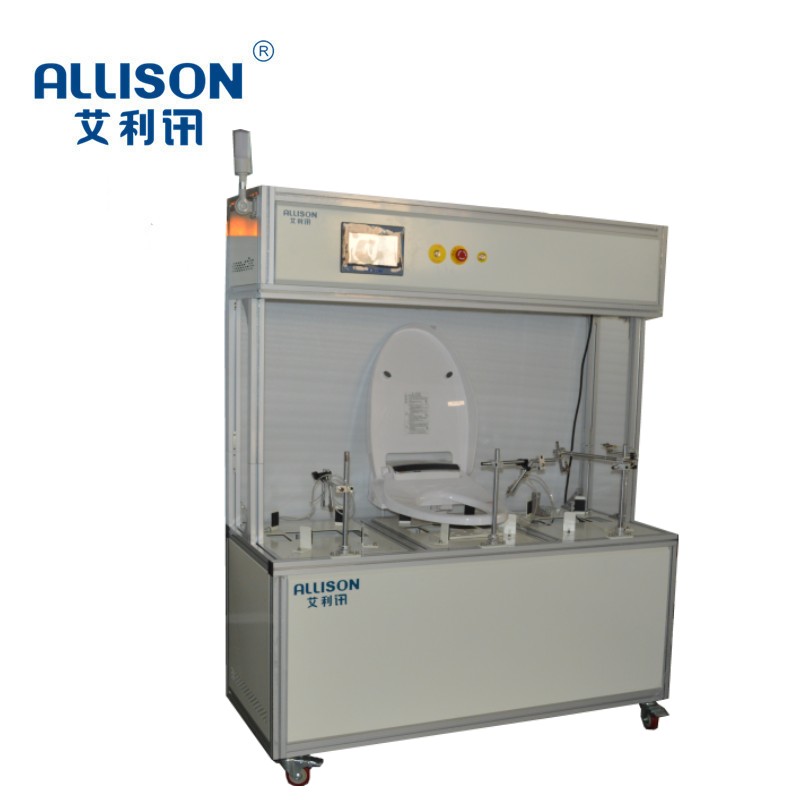

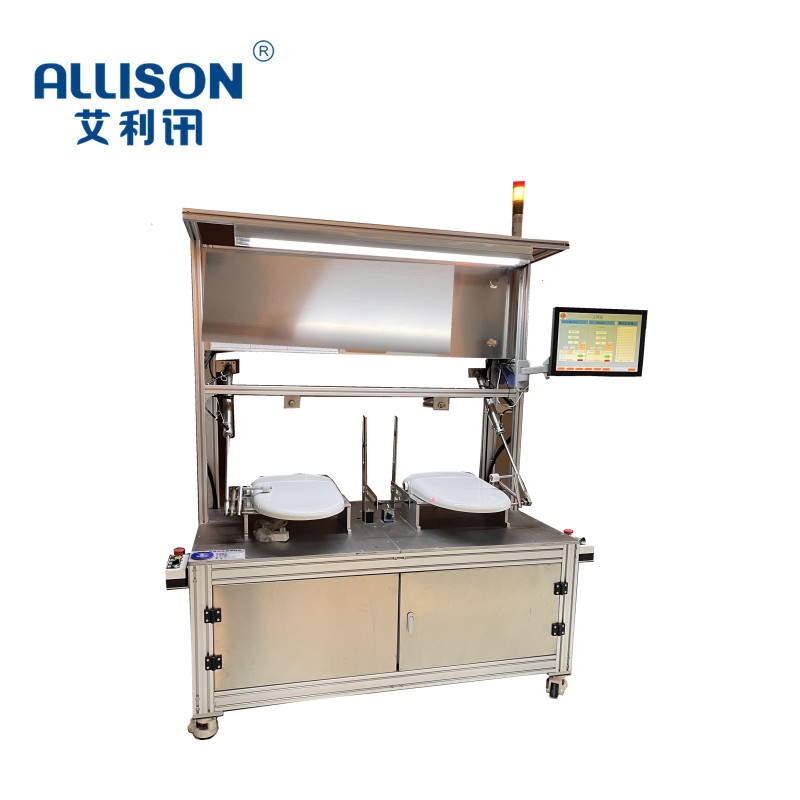

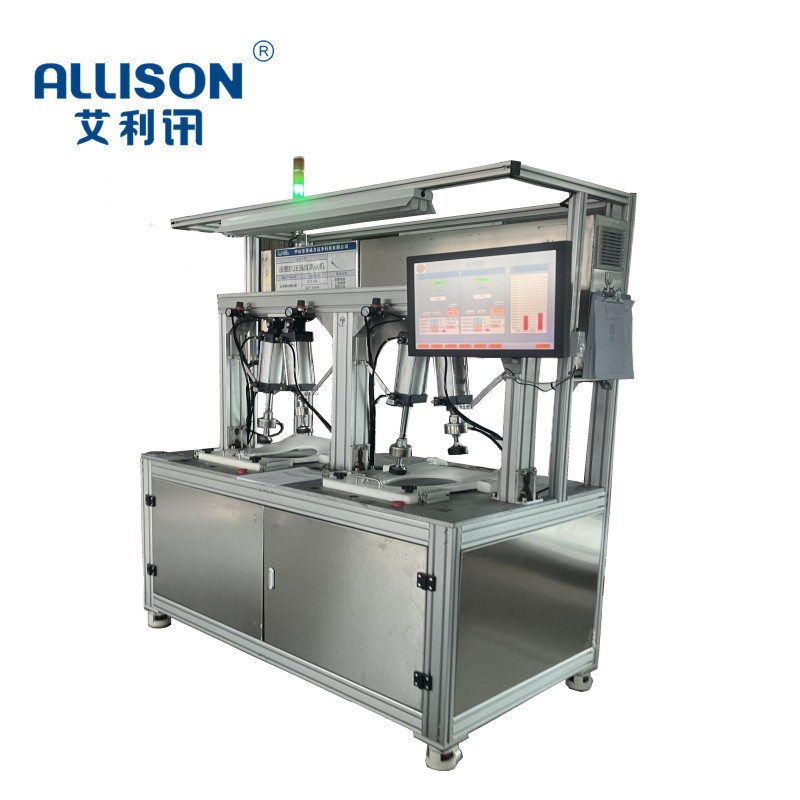

 The seat ring compressive strength tester is suitable for seat ring strength test and cover plate strength test when the

toilet is not connected with water. Through the cylinder driven diameter of 300MM, thick 5MM steel plate to test the

 cover plate and seat ring for persistent pressure test

Technical parameters：

1.Test Station: 2-4 station

2.Time Range: 0-99999 seconds

3.Timing accuracy: ± 0.1 seconds

4.Pressure regulation: pneumatic

5.Number of times set range: 0-999999 times

6.Control Mode PLC control 7-inch screen

7.Load pressure range: 0-3000N settable

8.Control mode: 17-inch industrial control all-in-one touch screen

9.Equipment size: 1350X850X1860 unit: mm

10.Power: 220V 2.2 kw
