GB/T34549-2017 Sanitary ware, intelligent toilet

GB/T23131-2019 Electric toilet seats for household and similar use

GB 38448-2019 limited values of energy efficiency and water efficiency of intelligent toilet

CBMF15-2016 smart toilet

Product description：

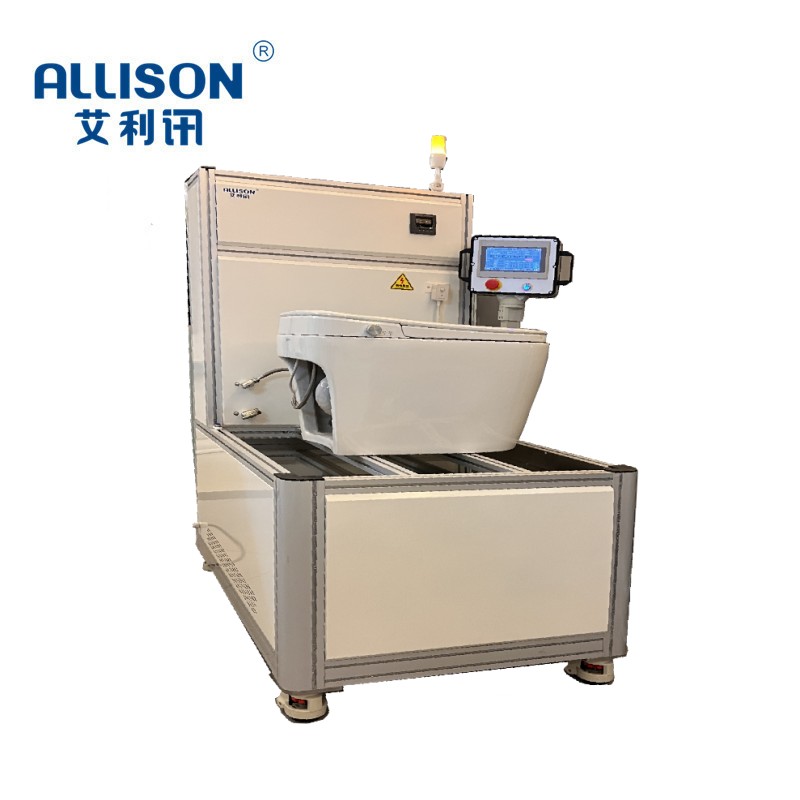

The utility model is mainly used for testing the water pressure tightness of the toilet assembly and the water hammer resistance. The testing machine adopts Mitsubishi PLC control and 7-inch touch screen display, the control system realizes pressure control through program automatic control, and the system automatically generates the required standard pressure, through the pressure sensor and copper pipe device to achieve the product in a set of water pressure under the sealing test and water hammer test. The device has automatic collection, data recording and so on, and can export and print related test content through USB

Scope of application: experimental testing/on-line testing, such as sealing test and product durability analysis

Main technical parameters：

1.Pressure Range: 0.1 ~ 1.0 mpa adjustable

2.Pressure accuracy: ± 1% accuracy 0.25 grade

3.Constant pressure water supply time: 1-99999s

4.Pressure display: static pressure, peak value

5.Cycle Frequency: 1-20/min

6.Test period: 0-9999999 adjustable

7.Number of test: 1 Way

8.Display: curve/value

9.Test medium: normal temperature tap water

10.Driving source: frequency conversion high-pressure water pump, air pump

11.Control mode: PLC touch screen setting

12.Source: 0.6 mpa

13.Power: 220V 50HZ 6.5 kw

14.Equipment Size: 1650X750X1680MM (according to customer samples)
