GB/T34549-2017 Sanitary ware, intelligent toilet

GB/T23131-2019 Electric toilet seats for household and similar use

GB 38448-2019 limited values of energy efficiency and water efficiency of intelligent toilet

CBMF15-2016 smart toilet

Equipment Overview:

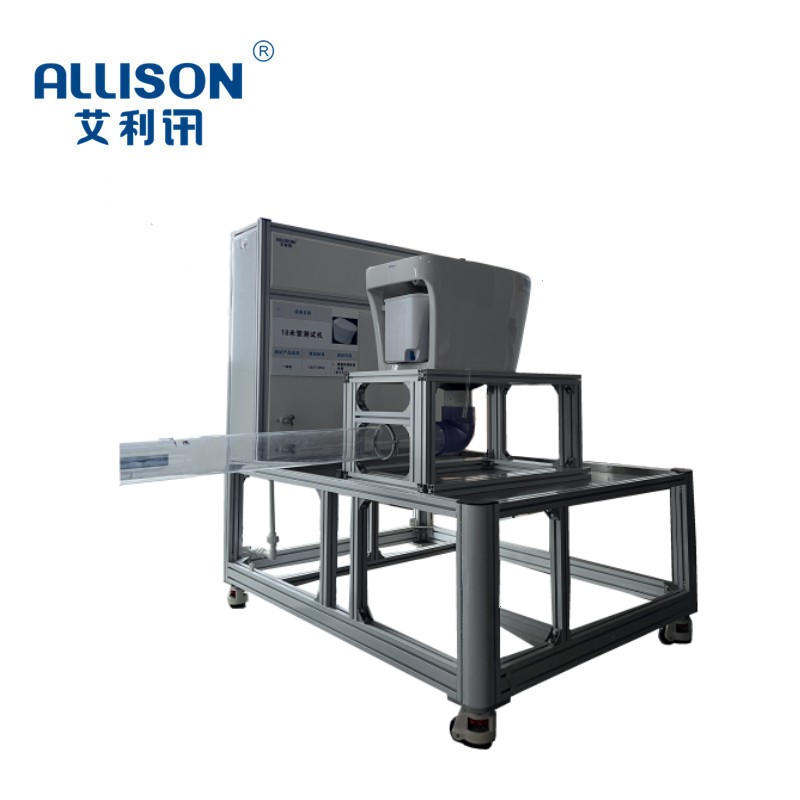

The 18-meter water efficiency test is mainly used to test the drainage performance of the toilet, and to test the drainage performance of sanitary ware and other products. The test equipment is assembled from aluminum profiles, using 18M Transparent Pipeline, to 3m for a group of arrangement. The test tube is designed according to relevant standards, installed under the worktable, and the test sample is installed on the surface of the worktable. According to the test results, the average transmission distance and the weighted transmission distance are obtained

Main technical parameters：

. Compliance: ASME A112.19.14-2005, CSA B45.0-15

. GB6952-2005 sanitary ceramics 8.6.3.5 performance test of drainage pipes

. Pipe downward slope: 2% . Pipe length: 18m

. Pipe diameter: 4′(100mm) pipe material: pipe diameter 100mm, transparent pipe

. The horizontal distance between the discharge tube and the specimen: 3M

. Discharge tube diameter: 38mm. Table length: about 20 meters

. Table width: 700mm x 600mm

. The support material of worktable is 40mm x 40mm square tube. The length of conveying pipe is 18m, the height difference is 200mm

. The size of solid sphere was 19 ± 0.4 mm in diameter and 3.0 ± 0.1 g in mass
