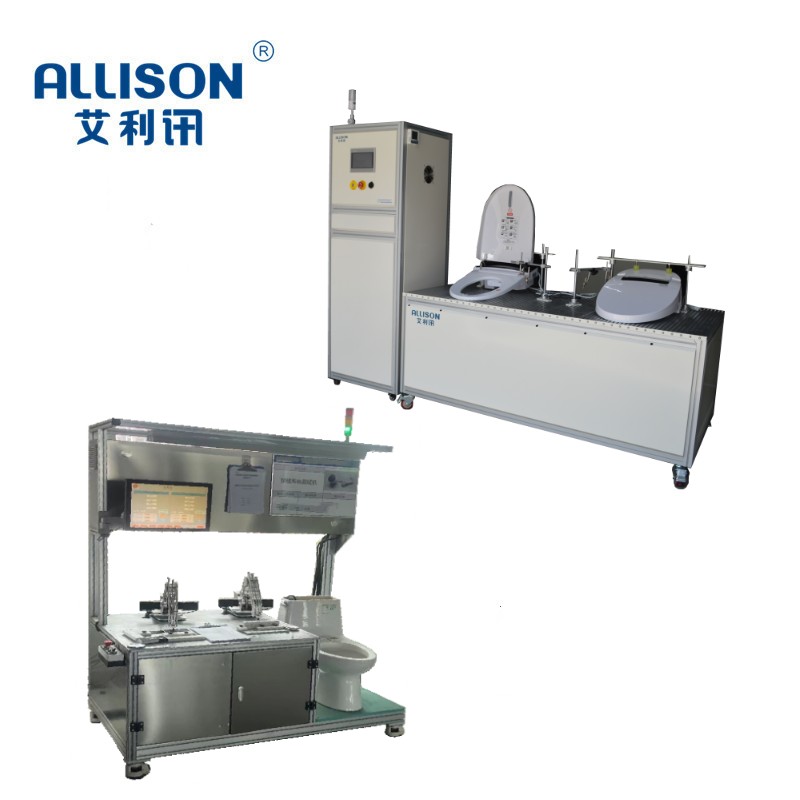

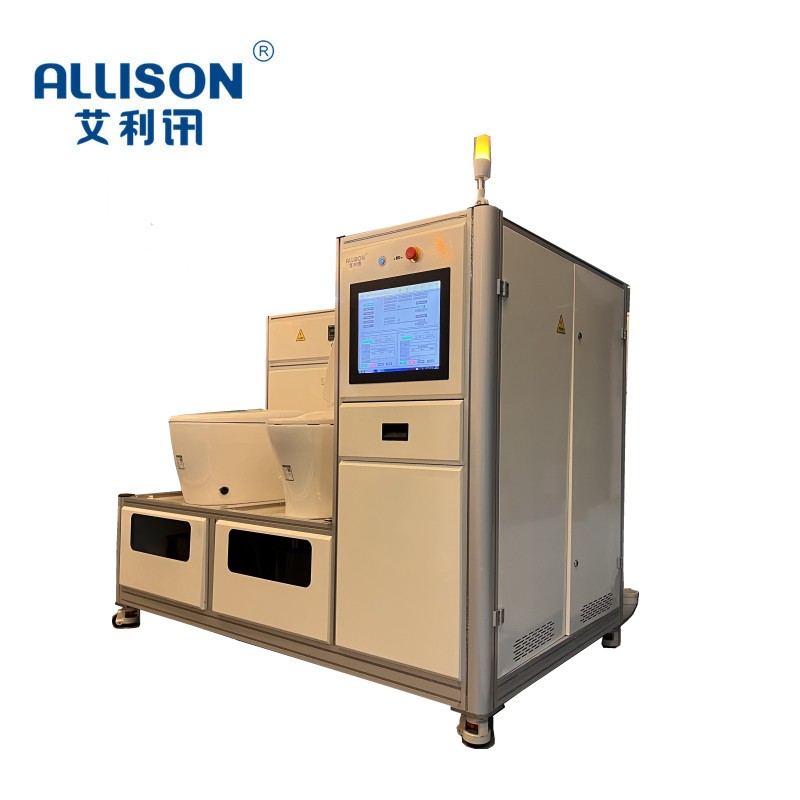

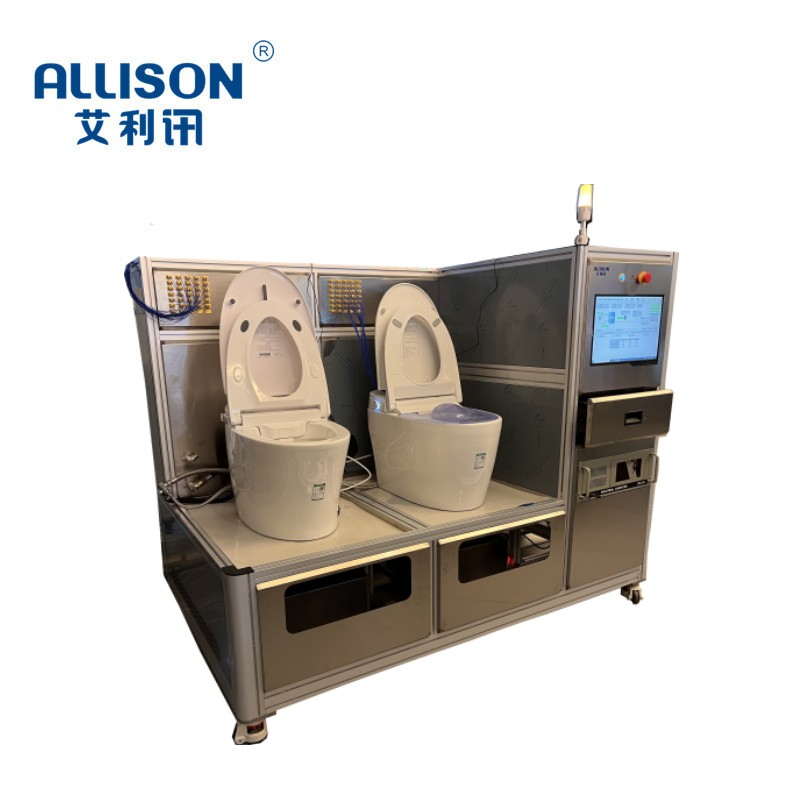

1.The intelligent toilet/toilet key life testing machine is suitable for touch screen panel/Mechanical Key and other related household appliances on the button switch life testing machine. Through PLC control, the point-moving cylinder and touch head are used to simulate the action of manual key, and the durability life test of the tested key switch is carried out. The testing machine is controlled by PLC program, which can carry out single-point key/multi-point button linkage operation and program cycle action

Real simulation of the use of button linkage. The equipment runs stably and is easy to maintain

Technical parameters：

1.Test station: 1-10 station optional

2.Test 4-6 keys per station, program cycle action

3.For different operation panel size, fixture can be replaced

4.Control Interface: 7-inch touch display with USB data export function

5.Control mode: Single Point Control/multi-point Linkage program control

6.The test head is made of wear-resistant and insulating silica gel/touch metal material

7.Test Speed: 10-40 BPM adjustable

8.Action Stroke: 0-100MM adjustable (depending on the product)

9.Test times: 1-999999 arbitrary set, test period: 0-999999 can be set

10.Power: 220VAC, 1
