1. Overview:

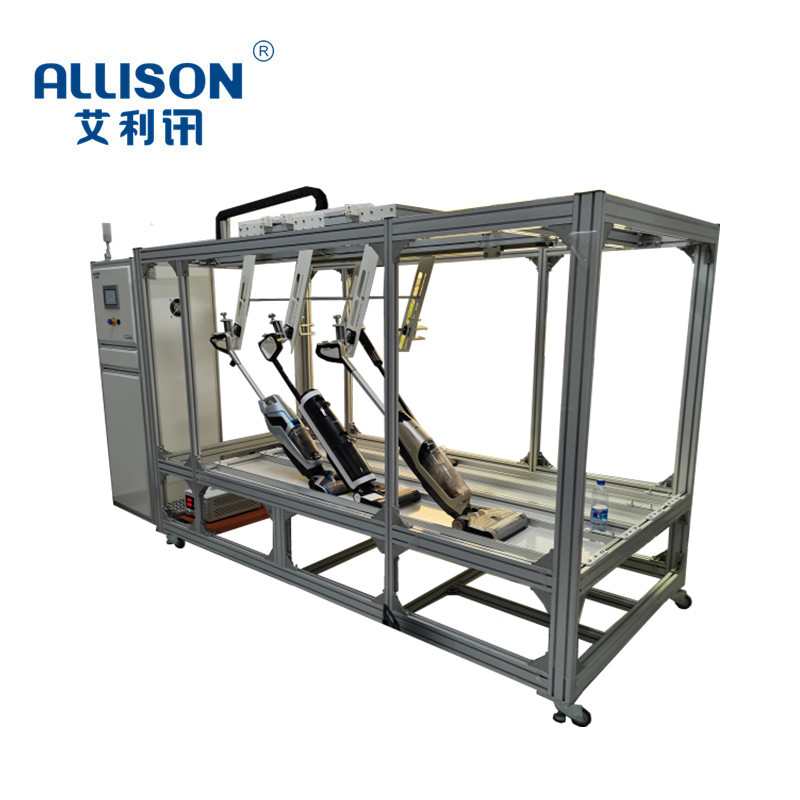

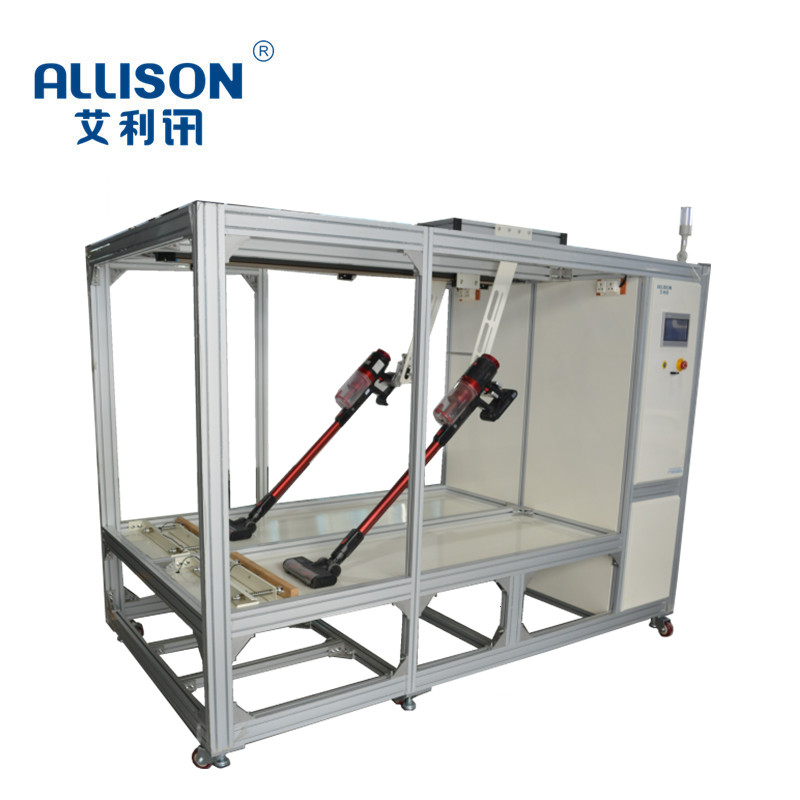

The machine is mainly used to test the life of the washing machine aging, simulation of the actual ground washing machine running situation, in the test table laying carpet, hard floor, floor tiles and other materials. Through PLC control, the operating temperature of each station is collected and at the same time, the washing machine is driven to and fro running at the speed of 0-1M/test, through the external AC and DC power supply to the washing machine for direct power, in the test bench relative to do reciprocating walking action. The reciprocating straight-line aging test was carried out on different worktable surfaces at the preset speed and stroke. The testing machine is controlled by PLC/7-inch touch screen to display the relevant testing parameters. The related detection data is exported via USB. The utility model has the advantages of strong universality, simple operation, convenient control and low failure rate.

1. Test station: 6 Station

3 station/Group 2. Detection Voltage: DC: 0-60V detection current: 0-20A/Station 3

4. Test fixture moving speed: 150-800mm/s settable

5. Electric parameters: current, voltage, power, temperature

6. Period: 0-9999999 Settable

 7. Counting Range: 0-9999999s settable

9. Test mode: time on-off setting, test number mode

10, water adding time: 0-99999S can be set 11, pumping time: 0-99999S can be set.

 12, temperature point: 2 Temperature Point/work station altogether 8 points

13, temperature probe: K-type temperature range: 0-200 degrees

 14, drive mode: servo motor reciprocating drive mechanism, mechanical transmission mechanism. Control mode: Mitsubishi PLC 7-inch Touch Screen

16, test data acquisition: voltage, current, test time, times, speed, stroke, temperature

17, data export function: USB

18, device size: 3500 X1250 X1680 units: MM

19, Device Power: 220V 2.5 kw 50Hz
