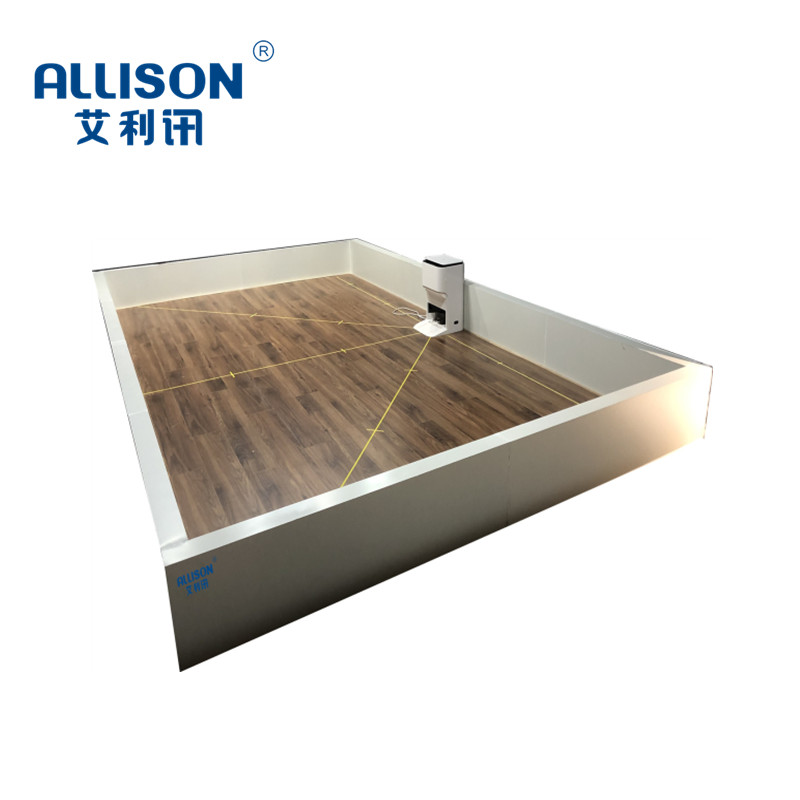

The utility model is mainly used for the robot backfilling test of the test sweeping robot in a specified space through different position points. Start the backfill at different angles in the case. Through the number of tests, failure times to test and record. The formula is used to back-up and docking of the sweeping robot, and the power is calculated and analyzed.

Key parameters:

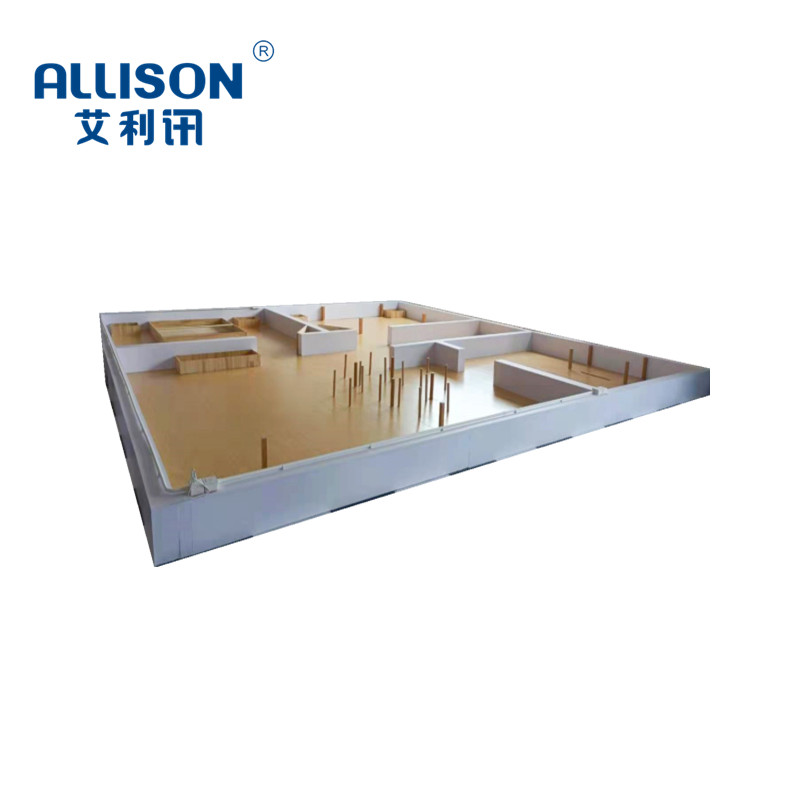

Test area size: 5000X3000X300(in mm)

Composition material: hoarding, fireproof multilayer board, outside white aluminum plastic board

Number of trials: 0-99,999

Test angle: 0 degrees, 45 degrees, 90 degrees, 135 degrees, 180 degrees

Test Times: 0-999999 times can be set

Test time: 0-999999 seconds, minutes, hours

Power: 220V 50Hz 1.5 kw
