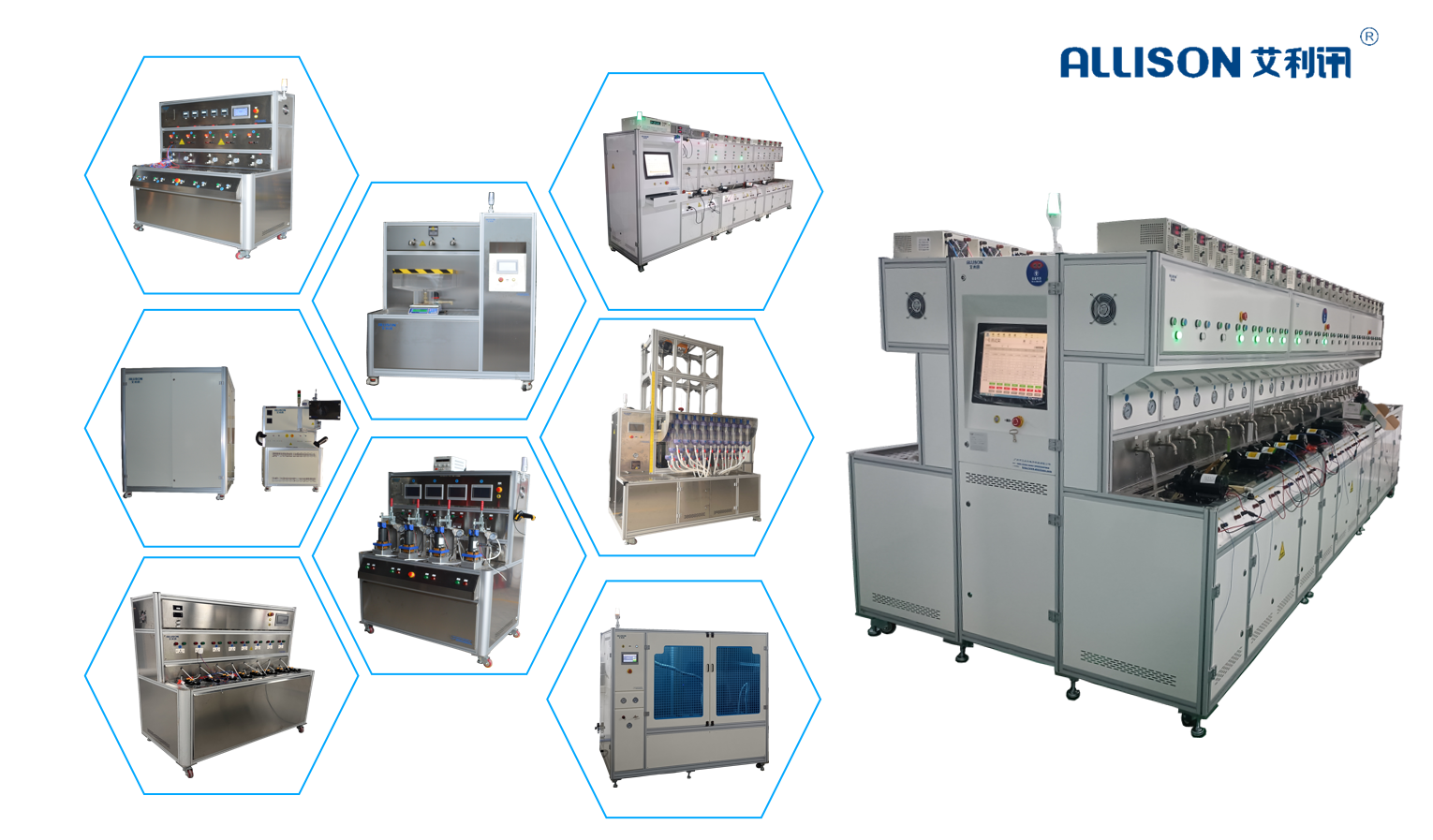

Water pump testing equipment, diaphragm pump (production line) comprehensive performance test bench is customized and designed according to relevant industry standards and customer test requirements, and the test bench is generally used for alternating current and direct current diaphragm pump products. For direct current, the connection method is adopted bushing, and for alternating current, the universal socket is used. Alternating current can be switched and adjusted by external variable frequency power supply/direct current power supply. By supplying to the samples with direct current and alternating current, the comprehensive use condition of the tested alternating current/direct current diaphragm water pump products is tested before leaving the factory, the test data is used for automatic judgment of the system. Qualified--OK. Unqualified---NG. The system also makes an audible and optical alarm for each test position

2. The test bench adopts 6 independent test positions, each position is equipped with independent power supply, pressure increase, and the control system adopts self-developed control software, independently tests and collects data for 12 positions, and records data in the form of curves.

3. The comprehensive performance test mode of the whole machine: direct current and current voltage, current, power, pressure, lift, valve opening angle adjustment, flow rate detection, temperature, etc. The whole machine life test mode: direct current and alternating current, current, power, pressure, temperature.

4. The test bench is controlled by PLC, and the 17-inch industrial touch screen displays relevant test parameters and data, and tests the products before leaving the factory, such as working current, water discharge lift, water discharge flow, heat temperature and other parameters, and the control system automatically monitors limits the upper and lower limits of each parameter in real time. Through the control system, the test data of each position is displayed and judged in real time, and the NG and of the products of each position are judged by the touch screen display, and the relevant test report report, etc.

Pump testing equipment, pump comprehensive life test machine, pump performance test bench
