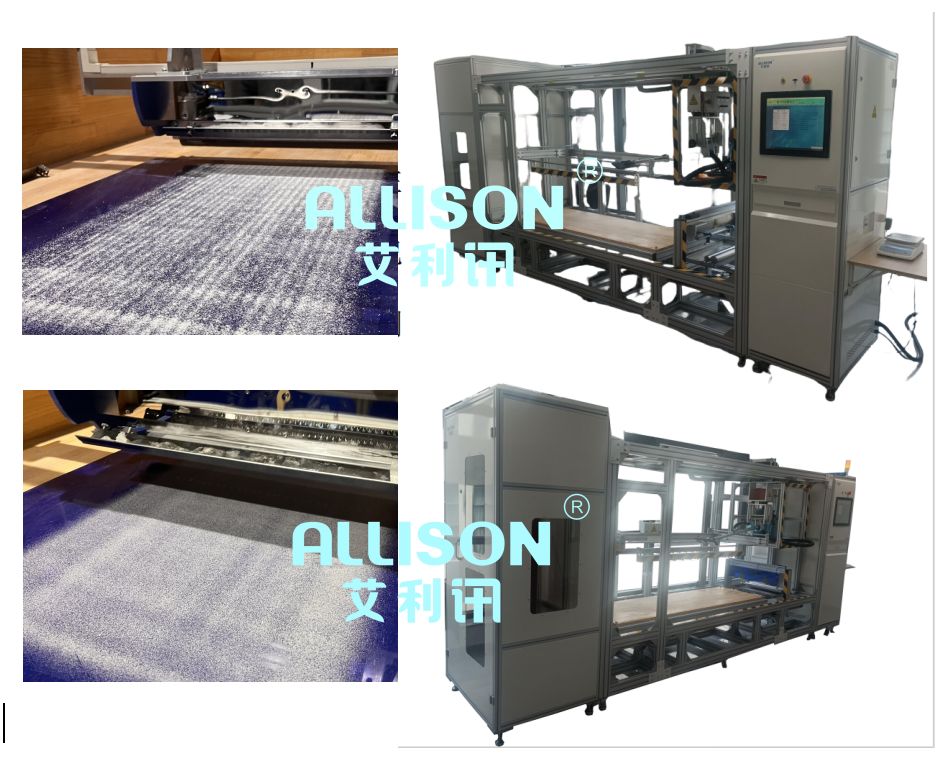

The vacuum cleaner performance test bench is manufactured in accordance with GB/T20291.1-2014, IEC60312-2010, and EN62885-2010, and is universally applicable to 90% of vacuum cleaner products on the market (handheld, canister, household, commercial, etc.). The equipment meets the relevant testing requirements for vacuum cleaner dust removal efficiency and dust removal capacity tests. It also meets the standard for testing the dust absorption capacity of wooden floors/test carpets and the dust removal capacity of crevices. Through a servo linear mechanism, the tested vacuum cleaner is driven to perform straight reciprocating motion, simulating the operational action of a vacuum cleaner used manually. The entire testing process is controlled by PLC. The testing equipment adopts our company's self-developed control system, which automatically calculates relevant formulas and outputs measurement reports through PLC.

The vacuum cleaner dust removal performance test bench primarily focuses on testing and evaluating the dust removal efficiency and capability of vacuum cleaners. The equipment is controlled by PLC, which drives the servo mechanism to simulate actual usage conditions and evaluate the dust removal capability of the vacuum cleaner. Additionally, the equipment features automated dust distribution, roller ash compaction, and motion resistance testing functions. Through PLC-related settings and controls, the tested vacuum cleaner can simulate actual usage conditions, such as back-and-forth movement on test platforms like floors, carpets, and grooves, at an adjustable speed of 0-1.0M/s. During the testing process, the system collects relevant parameters such as voltage, current, power, and electric energy, and records related test data. The test data can be exported via USB and printed. The test platform is widely applicable to vacuum cleaner manufacturers and testing institutions for dust removal performance testing of vacuum cleaners.
