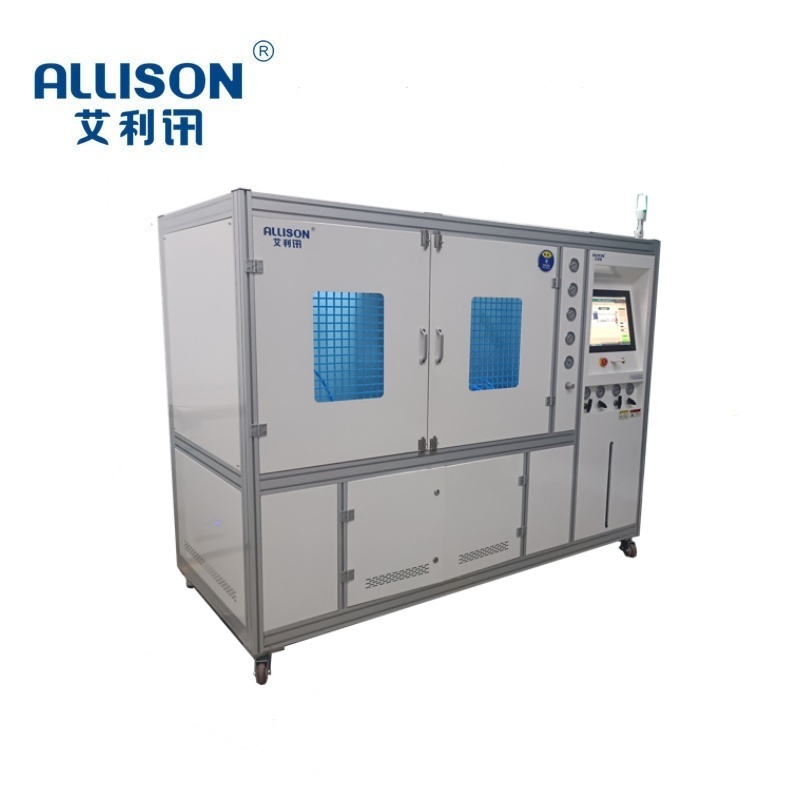

ISO 16925 test steam jet machine

1. Overview: This equipment is specifically designed in accordance with the ISO 16925:2021 standard, "Paints and Varnishes - Determination of Resistance of Coatings to High-Pressure Water Jetting," to simulate a high-pressure steam jetting environment. It is used for testing the jetting resistance of coating samples in various fields such as automobiles, construction machinery, ships, and steel structures, ensuring accurate and reliable test data, as well as convenient and efficient operation.

2. Basic equipment specifications

2.1 Chassis structure and material

- Outer box material: 304 stainless steel

- Assembly method: aluminum profile assembly

- Box structure: Single-door structure, equipped with 1 visual observation window

- Observation window accessories: magnetic window cleaner (facilitating the removal of water droplets on the window surface)

- Door opening and closing control: Magnetic and electric control, sealed to prevent leakage

- Internal lighting: IP protection level, waterproof and dustproof, with sufficient light

- Exhaust function: Top exhaust device, effectively discharging test water vapor

Current version: ISO 16925:2021 (2nd edition, published in December 2021), replacing ISO 16925:2014

Technical Committee: ISO/TC 35 (Paints and Varnishes) / SC 9 (General Test Methods)

ICS Classification: 87.040 (Coatings, Varnishes)

China's standard adoption status: No equivalent/equivalent national standard GB/T 16925; domestic standards are often directly referenced or converted into industry methods on the National Standard Information Public Service Platform

Scope of application: Laboratory simulation of damage to coatings caused by high-pressure water jet cleaning, assessing the coating's resistance to detachment, peeling, and adhesion retention

Test principle: Spray the coating sample with high-pressure water jet at specified pressure, flow rate, nozzle distance/angle, and temperature. Conduct visual/photographic comparison, measure the peeling area, and determine the water jet resistance level
