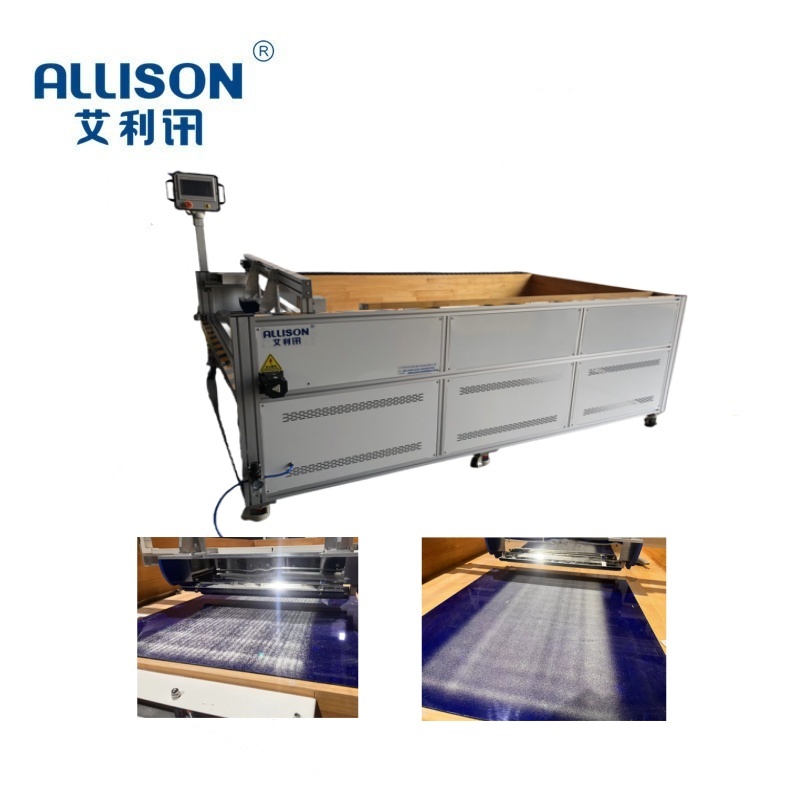

1.1 Comprehensive testing platform for dust removal performance of robotic vacuum cleaners, implementing standards: IEC62929 QB/T34454-2017, Chapter 6 IEC 62885-7:2020, Chapter 9 Manufacturing. It is mainly suitable for conducting comprehensive performance and dust removal performance tests on sweeping robots in relative environmental testing rooms. Adopting PLC control and 7-inch touch screen display, the sorting vehicle is driven by a servo moving mechanism to perform automatic ash distribution testing and roller pressing. Controlled by PLC for corresponding speed, travel, and dust distribution time. Through program control, complete the pre testing processes such as plastering and pressing.

1.2 The test cabinet rack is composed of 1500X2000 unit: MM rectangular test racks, which are integrated into multiple testing units.

1.3 Configuration Test Carpet Wilton Carpet, Specification 0.6 X 2 meters, Test Ground Grey DMT Carpet Grey 2KG

1.4 The rack is made of 4080 aluminum profiles and 40
