The rotary switch life testing machine is designed according to customer requirements and industry related testing standards, and is commonly used for over 90% of rotary switch products. The life testing machine is mainly suitable for testing the on-off life and durability life of rotary switch products in forward and reverse gear positions. By simulating working conditions with or without load, different gear operating modes and durability on-off life tests are conducted.

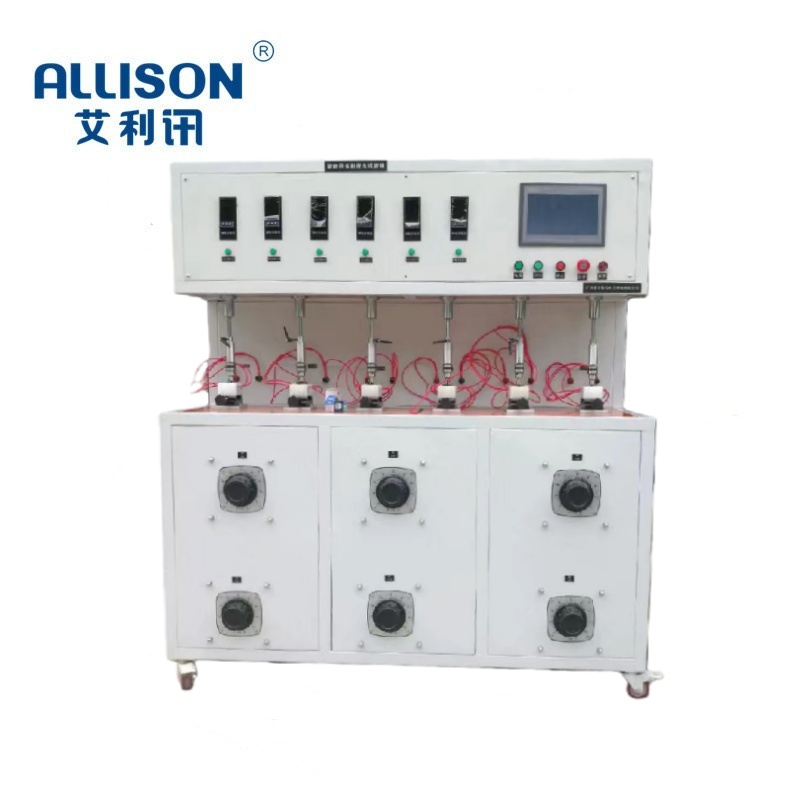

2. The testing platform is a 6-station independent testing platform that uses external independent power supply to test samples. It can directly connect the load power and test voltage. Users can expand the workstations according to actual testing requirements, and each workstation runs independently for testing without being affected by each other.

3. The lifespan testing machine adopts a 7-inch touch screen control, and each workstation uses an independent servo stepper motor as the torque drive source. Relevant parameters are set through PLC, including forward rotation, reverse rotation, angle, frequency, speed, time and other related action settings. Perform on/off signal detection without load, use IO to achieve on/off testing and IO signal on/off judgment. Conduct service life testing and judgment on the test switch through different gears and rotation angles, and the PLC controller automatically judges whether it is qualified or unqualified. Qualified - green light unqualified - red light. The PLC control system automatically records the number of relevant tests, test time, test cycle, etc., and records the number of relevant non conformities and alarm time. The relevant test parameter system automatically saves the relevant test data and can export the data through USB.

4. The testing machine is assembled with aluminum profiles and powder coated sheet metal, and the fast wiring terminal provides independent power supply to each workstation. Each workstation is equipped with running, stopping, and alarm indicator lights. The equipment is equipped with movable casters and foot cups for fixing. The appearance of the equipment is neat and beautiful.
