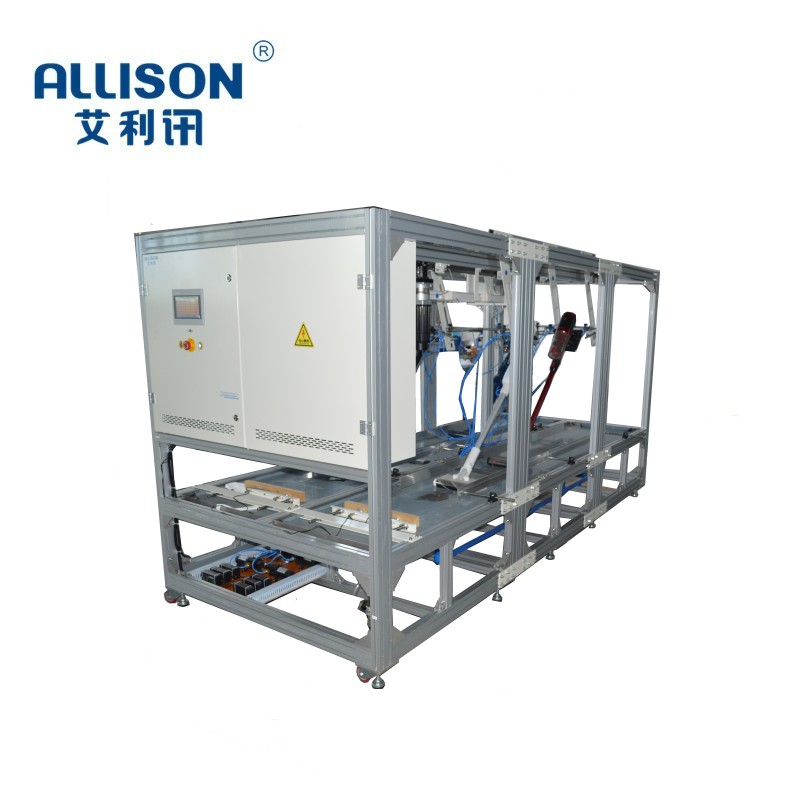

1. Mobile aging testing equipment for dry and wet vacuum cleaners, mainly suitable for testing the overall lifespan of floor scrubbers and vacuum cleaners. During the experiment, the control system is applicable to both dry and wet vacuum cleaners. Users can choose to install different test floors and use water circulation to simulate the actual situation of wet vacuum cleaners based on actual testing. The testing equipment can be equipped with threshold testing, and the threshold testing method can be used to simulate the actual ground walking situation of the vacuum cleaner during the testing process. Lay materials such as carpet, hard floor, and floor tiles on the test bench (carpet is provided separately). Through PLC control, the operating current of each workstation is collected, and the vacuum cleaner is driven at a test speed of 0-1M to perform reciprocating operation/threshold crossing tests. Control the number of on-off times, on-off time, movement speed, movement distance and other action settings through the program. Equipment testing is commonly used for AC vacuum cleaners and DC vacuum cleaners. The vacuum cleaner is directly powered by an external AC/DC power source and moves back and forth on the test bench. Perform reciprocating linear aging tests on different workbenches at predetermined speeds and strokes.

2. The testing machine is controlled by PLC and displayed on a 7-inch touch screen. The servo motor serves as a reciprocating linear drive source, and the PLC records relevant detection parameters. The relevant detection data is exported via USB. Strong universality, simple operation, convenient control, and low failure rate.
