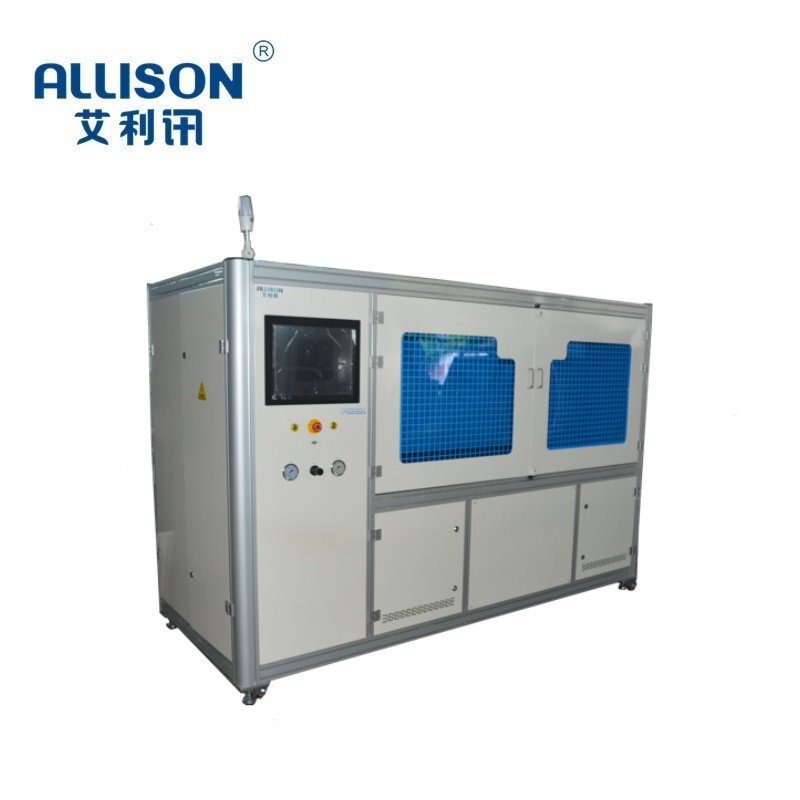

1. The high-pressure pulse blasting life testing machine is designed to meet customer testing requirements and relevant standards. The equipment is capable of conducting high-frequency pressure pulse tests and pressure holding tests on products under water pressure boosting. Perform high-frequency pressure pulse tests on the tested product at any pressure range of 2.5-15Mpa, and conduct explosive tests on the product at a maximum pressure of 50Mpa. Conduct a comprehensive evaluation of the product's service life under pressure testing conditions. The testing machine is mainly used to check whether the product meets the relevant design requirements.

2. The pulse blasting test machine adopts FX-3U, PLC control, and a 17 inch display. Complete relevant experiments through parameter setting and control. Using remote APP monitoring to achieve mobile remote control, high-precision sensors are used to collect real-time pressure data. The testing system displays pressure curves in real time and automatically generates waveform curves, sine, trapezoid, and static. The relevant test data can be exported and printed via USB. The relevant test data can be generated by oneself and the test report can be printed through a printer.

3. The testing machine adopts variable frequency high-pressure pump technology to achieve pulse testing, static pressure testing, etc. The product is output with a constant oil pressure through a high-pressure pipeline, and the valve body controls the pulse action and pressure holding action of the pressure, using a single high-pressure pipeline output.

4. The testing machine adopts ergonomic design and has a flip up door. Internally equipped with LED lights and automatic door opening and shutdown functions. The experimental door adopts a mesh explosion-proof door design, and the working platform is a 304 non inductive steel plate. It can effectively prevent rust and carry out testing water recovery. The equipment operation adopts a self-developed system, which is easy to operate and does not require a dedicated person to operate.
